DataExpert DSV3365
Logs
Interface
Signaling
PCI ID
8811
8905
8906
8907
8908
8909
890A
890B
890C
890D
890E
890F
FCC IDLUT-DSV3365
Chips and specs
-> Video
| MTL | |
|---|---|
| Data Bus | 32-bit PCI |
| Card Type | Video card |
| Video Chip Set | S3 |
| Maximum Video Memory | 2MB DRAM |
| Video Types Supported | Monochrome, CGA, EGA, VGA |
| Highest Resolution Supported | 1280 x 1024 |
- Bus: PCI, VLB
- Release date: 1995
- Release price: US $249
| Memory | |
|---|---|
| Bus width | 64bit |
| Memory type | FPM, EDO |
| Max memory size | 4MB (PCI) / 2MB (VLB) |
| Effective Memory Clock | 60 MHz |
| Video chip | |
|---|---|
| Core clock | ??? MHz |
| Core width | 64bit |
| RAMDAC speed | 135 MHz |
| Features | |
|---|---|
| Video Acceleration | MPEG-1 (VCD) |
Also known as
- DataExpert DSV3365E
I/O ports
Power connectorsLast updated 2025-04-16T19:56:58Z
No card BIOS files available
1 chip with BIOS files available Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
5 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
2.41.07
Arch
x86
OS support
Windows 9x
Size
183.603KB
Filename
Name
Version
1.70.04
Arch
x86
OS support
Windows 3.1x
Size
606.14KB
Filename
Name
Version
1.6
Arch
x86
OS support
OS/2 1.x
OS/2 2.x
OS/2 Warp 3.x
Size
1.211MB
Filename
Name
Version
2.01.09
Arch
x86
OS support
Windows 9x
Size
124.185KB
Filename
Name
Version
2.00.18
Arch
x86
OS support
Windows NT 4.0
Size
177.732KB
Filename
1 card document available
Release date
File
Logs
Chip
Release date
File
Logs

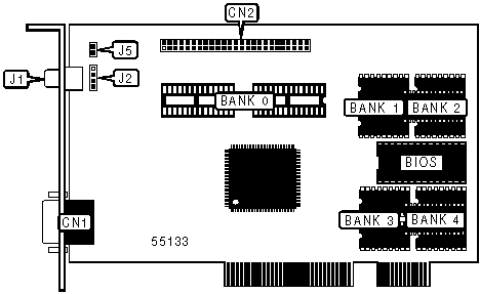

Image 1 of 2 (Microhouse)
Image 2 of 2 (Hias1000)
