ABit AB-AN7

Description

Chips

BIOS 10

Drivers 60

Documentation 1

Chipset

Nvidia nForce2 Ultra 400 (MCP2-T)

Socket

Socket A (PGA462)

FSB speeds

266MHz333MHz400MHz

Form factor

ATX (max 305 x 244 mm)

Dimensions

305mm x 244mm

Cache

None/Integrated in the CPU

Max RAM size

3GB(200/266/333)2GB(400)

RAM type

DDR UDIMM

PSU connector

ATX P4 connector 12v (4-pin P4) ATX 1.x (20-pin ATX)

I/O ports

1x

3.5mm Audio Combo

2x

FireWire 400

1x

Floppy interface

2x

IDE interface

1x

PS/2 keyboard

1x

PS/2 mouse

1x

Parallel

1x

RJ-45 LAN

1x

S/PDIF

2x

SATA I

1x

Serial

1x

Toslink

6x

USB 2.0

Expansion slots

1x

1.5V AGP

5x

32-bit PCI

Last updated 2026-02-13T09:05:07Z

Board info score is 9.8/10

Chips

-> Chipset part

Nvidia NV1F Nvidia MCP2

-> Audio

Realtek ALC658 (AC97)

-> FireWire ctrl.

Texas Instruments TSB41AB2 (2 port FireWire 400 PHY)

-> Power Management

Winbond W83303D (ACPI ctrl.)

-> Power Regulation

Intersil HIP6301CB (Multi-Phase PWM ctrl.) Attansic Technology ATXP1 (VID controller)

-> SATA ctrl.

Silicon Image SiI3112

-> Sensing / Monitoring

Winbond W83L950D

-> Super I/O

Winbond W83627HF

CPU family support

10 BIOS files available

Award - 10 entries

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

06/13/2005-nVidia-nForce-6A61BA1DC-19

Note

Core version

6.00PG

BIOS version

Logs

POST string

11/23/2004-nVidia-nForce-6A61BA1DC-18

Note

Core version

6.00PG

BIOS version

Logs

POST string

08/06/2004-nVidia-nForce-6A61BA1DC-17

Note

Core version

6.00PG

BIOS version

Logs

POST string

07/30/2004-nVidia-nForce-6A61BA1DC-16

Note

Core version

6.00PG

BIOS version

Logs

POST string

03/04/2004-nVidia-nForce-6A61BA1DC-00

Note

Core version

6.00PG

BIOS version

Logs

POST string

03/04/2004-nVidia-nForce-6A61BA1DC-15

Note

Core version

6.00PG

BIOS version

Logs

POST string

01/06/2004-nVidia-nForce-6A61BA1DC-14

Note

Core version

6.00PG

BIOS version

Logs

POST string

11/13/2003-nVidia-nForce-6A61BA1DC-13

Note

Core version

6.00PG

BIOS version

Logs

POST string

11/11/2003-nVidia-nForce-6A61BA1DC-12

Note

Core version

6.00PG

BIOS version

Logs

POST string

Note

All AN7 Modded BIOS's

Core version

6.00PG

BIOS version

Logs

60 drivers available

Name

Version

Arch

OS support

Size

Filename

Name

NVIDIA ForceWare Display Driver (WHQL)

Version

56.64

Arch

x86

OS support

Windows 2000

Windows XP/2k3

Size

10.031MB

Filename

56-64-winxp2k-english-whql.exe

Name

Realtek AC97 audio driver

Version

A4.06

Arch

x86

OS support

Windows 2000

Windows XP/2k3

Size

17.867MB

Filename

Name

SiFlashTool BIOS Update Utility

Version

N/A

Arch

x86

OS support

MS-DOS

Size

26.809KB

Filename

siflashtool.zip

Name

SiICfg Configuration Utility

Version

1.2.0.5

Arch

x86

OS support

Windows 2000

Windows 9x

Windows NT 4.0

Windows XP/2k3

Size

1.483MB

Filename

sii0680-x86-installsiicfg-1205.zip

Name

Sil3x12 SATA Win2k/2k3/XP/Vista driver

Version

1.3.68.2

Arch

x86

OS support

Windows 2000

Windows Vista

Windows XP/2k3

Size

127.754KB

Filename

3x12-x86-1-3-68-2-logo.zip

Name

Silicon Image Serial ATA non-Raid driver

Version

1.3.61.0

Arch

x86

OS support

Windows 2000

Windows 9x

Windows NT 4.0

Windows Vista

Windows XP/2k3

Size

122.511KB

Filename

swd-003x12-00w-1361.zip

Name

Silicon Image SiFlashTool

Version

N/A

Arch

OS support

Windows XP/2k3

Size

26.809KB

Filename

siflashtool.zip

1 board document available

Release date

File

Logs

Release date

File

AN7 User Manual rev 1.00

Logs

Image 1 of 5 (evasive)

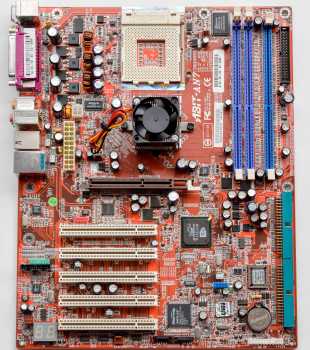

Image 3 of 5 (Motherboard Continuum)

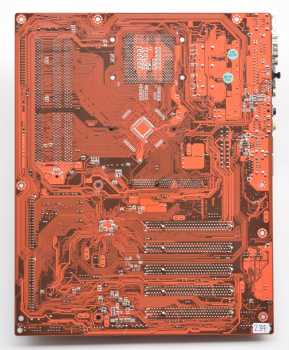

Image 4 of 5 (Motherboard Continuum)

Image 5 of 5 (Motherboard Continuum)
