ABit AB-KT7A-RAID
Chipset
Socket
FSB speeds 200MHz266MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
1.5GB
RAM type SDR UDIMM
PSU connector
Also known as
- ABit AB-KT7A-RAID V1.0 V1.1 V1.2

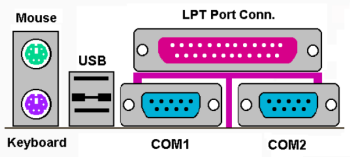

I/O ports1x
Floppy interface
4x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 1.x
Expansion slots1x
16-bit ISA
6x
32-bit PCI
1x
Universal AGP
Last updated 2026-02-26T23:14:04Z
Board info score is 9.8/10
Chips
CPU family support
17 BIOS files available
Award - 17 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/11/2002-8363-686A-6A6LMA19C-A9
Note
(kt7_a94b.bin) EVALUATION ROM by KUROKOGE experimental Athlon XP support
Core version
6.00PG
BIOS version
Logs
POST string
04/14/2001-8363-686A-6A6LMA19C-00
Note
(KT7A/KT7E 686B SBLIVE FIX) EVALUATION ROM - NOT FOR SALE
Core version
6.00PG
BIOS version
Logs
16 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
1.00
Arch
x86
OS support
Windows 2000
Windows NT 4.0
Size
25.23KB
Filename
Name
Version
0.95
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Size
940.276KB
Filename
Name
Version
1.11.0512
Arch
x86
OS support
Windows 9x
Size
37.634KB
Filename
Name
Version
2.352.7.126
Arch
x86
, x64
OS support
Windows Vista
Size
79.442KB
Filename
Name
Version
2.344
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
137.612KB
Filename
Name
Version
4.49V
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.369MB
Filename
Name
Version
4.43V
Arch
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.058MB
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
227.749KB
Filename
Name
Version
5.70d
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Size
3.925MB
Filename
Name
Version
V3.00a
Arch
x86
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.867MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
MS-DOS
OS/2 Warp 4.x
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
4.28MB
Filename
Version
Arch
x86
OS support
MS-DOS
OS/2 Warp 4.x
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Size
4.253MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
250.848KB
Filename
Version
Arch
x86
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
184.771KB
Filename
Version
Arch
OS support
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs

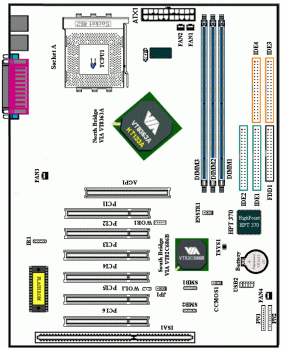

Image 1 of 4 (ABit)

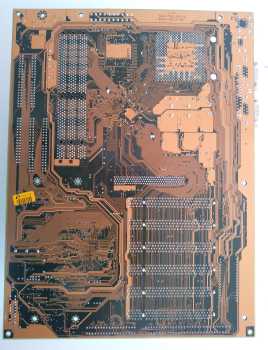

Image 2 of 4 (VooDooMan)
Image 3 of 4 (VooDooMan)
Image 4 of 4 (ABit)
