ADLink CoreModule 745
Logs
chipChipset
speedFSB speed
400MHz
moboForm factor
PC 104 Plus (max 96 × 116 mm)
dimDimensions
96mm x 106mm
ramMax RAM size
2GB
ramRAM type
  • DDR3 (Unregistered)
ramRAM slot
ramMax RAM size
2GB
tag Also known as
cpuCPU socket
1x
pwrPSU connector
Empty
connI/O ports
1x
GPIO
1x
IDE interface
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
SATA II
3x
Serial
4x
USB 2.0
1x
VGA
cardExpansion slots
1x
PC/104+ (PC/104-Plus)
notes Notes

CM-745-R-17 (CoreModule™ 745, Intel® Atom™ SC N450, 1.6GHz, 4GB SSD, Video, Gigabit Ethernet, PC/104-Plus)

CM-745-R-19 (CoreModule™ 745, Intel® Atom™ DC D510, 1.6GHz, 4GB SSD, Video, Gigabit Ethernet, PC/104-Plus)

Last updated 2025-05-29T14:58:14Z
Board info score is 7.2/10
chip Chips
-> Chipset part
Intel 82801HM (ICH8M)
-> Bridge Interface
ITE IT8888G (PCI to ISA Bridge)
-> Network
Intel 82574IT (PCIe Gigabit Ethernet)
-> Super I/O
SMSC/SMC SCH3112
cpufam CPU family support
bios No BIOS files available
drv No drivers available
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
2011-09-15
File
Logs
Family
Release date
2011-09-15
File
Logs
Family
Release date
2012-12
File
Logs
Family
Release date
2010-06
File
Logs
Family
Release date
2010-06
File
Logs
Family
Release date
2010-03
File
Logs
Family
Release date
2010-03
File
Logs
Family
Release date
2009-12
File
Logs
Family
Release date
2014-07
File
Logs

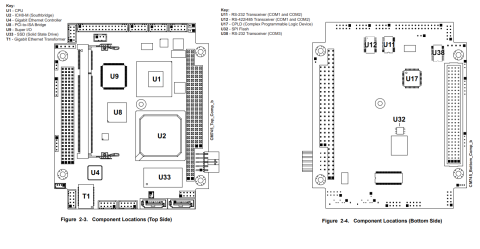

image1 Image 1 of 2 (ADLink)
