ADLink NuPRO-720
Logs
chipChipset
cpuSocket
BGA481
speedFSB speed
Empty
moboForm factor
Single Board Computer
dimDimensions
338mm x 122mm
ramMax VRAM size
16MB
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
Empty
connI/O ports
1x
CF Card Slot
1x
Floppy interface
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
2x
RJ-45 LAN
2x
SATA I
2x
Serial
4x
USB 2.0
1x
VGA
cardExpansion slots
1x
PICMG 1.0 (PCI/ISA)
notes Notes

Embedded AMD Geode LX800 Processor

Last updated 2025-05-29T15:01:00Z
Board info score is 8.7/10
chip Chips
-> Chipset part
AMD CS5536
-> Audio
Realtek ALC203 (AC97)
-> Bridge Interface
ITE IT8888G (PCI to ISA Bridge)
-> Network
Intel 82551ER (PCI Fast Ethernet)
-> RAID ctrl.
VIA VT6421A
-> Super I/O
Winbond W83627HG
cpufam CPU family support
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/15/2008-AMD-GX3-6A43AXABC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/15/2008-AMD-GX3-6A43AXABC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 12 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
2003
Arch
x86
OS support
MS-DOS OS/2 2.x
Size
554.797KB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 2000
Size
12.279MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.422MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.693MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.525MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.909MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows NT 4.0
Size
7.553MB
Filename
Name
Version
N/A
Arch
OS support
Windows 2000 Windows XP/2k3
Size
12.16MB
Filename
Name
Version
11.1
Arch
x86 , x64
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Size
36.353MB
Filename
Name
Version
A4.06
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
17.867MB
Filename
Name
Version
5.40A
Arch
x86 , x64
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
10.793MB
Filename
Name
Version
6.10C
Arch
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Size
11.952MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2009-02
File
Logs

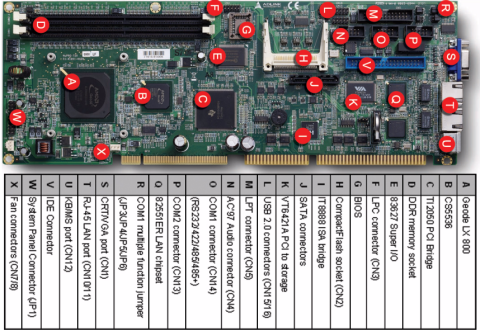

image1 Image 1 of 3 (ADLink)
image2 Image 2 of 3 (ADLink)

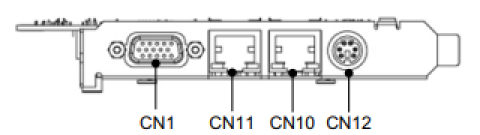

image3 Image 3 of 3 (ADLink)
