ADLink ReadyBoard 620
Chipset
Socket
FSB speed 400MHz
Form factorEPIC (max 115 x 165 mm)
Dimensions115mm x 165mm
Cache
None/Integrated in the CPU
Max RAM size
1GB
RAM type 200-pin DDR SO-DIMM
PSU connector
Also known as
- ADLink RB1-620-R-11

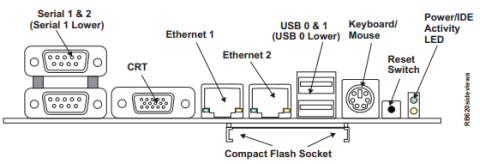

I/O ports1x
CF Card Slot
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 KB+MS Combo
1x
Parallel
2x
RJ-45 LAN
4x
Serial
4x
USB 2.0
1x
VGA
Expansion slotsEmpty
Notes
Parallel and floppy have shared connector
Has PC/104-Plus Bus Interface
Last updated 2025-05-29T15:04:15Z
Board info score is 7.6/10
Chips
-> Chipset part
-> Audio
-> Bridge Interface
-> Network
-> Super I/O
CPU family support
No BIOS files available
9 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
2003
Arch
x86
OS support
MS-DOS
OS/2 2.x
Size
554.797KB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 2000
Size
12.279MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.422MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.693MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.525MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.909MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows NT 4.0
Size
7.553MB
Filename
Name
Version
11.1
Arch
x86
, x64
OS support
MS-DOS
Windows 2000
Windows 9x
Windows XP/2k3
Size
36.353MB
Filename
Name
Version
A4.06
Arch
x86
OS support
Windows 2000
Windows XP/2k3
Size
17.867MB
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
2006-06-09
File
Logs
Family
Release date
File
Logs

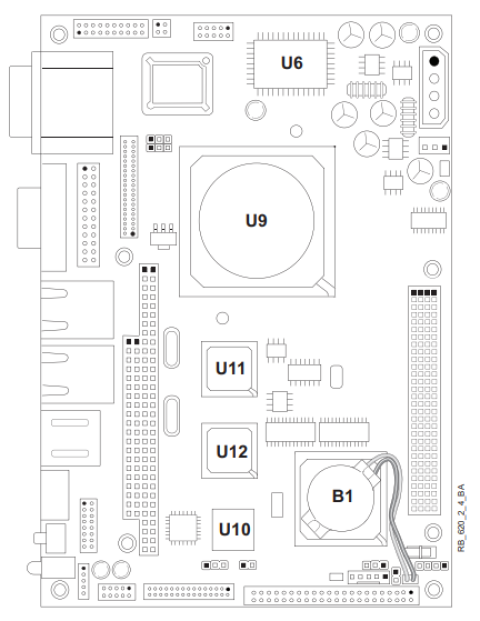

Image 1 of 3 (ADLink)
Image 2 of 3 (ADLink)
Image 3 of 3 (ADLink)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
