Advantech PCA-6126 (Rev. A1)
Logs
chipChipset
speedFSB speeds
10MHz16MHz
moboForm factor
Single Board Computer
dimDimensions
334 x 122mm
ramMax RAM size
4MB(onboard)
ramRAM type
  • FPM (Unregistered)
ramRAM slot
ramMax RAM size
4MB(onboard)
tag Also known as
cpuCPU sockets
?x
?x
pwrPSU connector
Empty
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
Parallel
2x
Serial
cardExpansion slots
1x
16-bit ISA
notes Notes

Note the D variant has an additional 360KB ROM disk.

Last updated 2026-02-18T07:15:23Z
Board info score is 8.3/10
chip Chips
-> Chipset part
Headland HT12
-> Human Interface
(multiple brand) 8042 (Keyboard Controller)
-> Real-Time Clock
(multiple brand) 6818
-> Super I/O
Acer M5105
cpufam CPU family support
bios No BIOS files available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
DH12-1593-061390-KH
Note
Core version
061390
BIOS version
Logs
drv 1 driver available
Name
Version
Arch
OS support
Size
Filename
Name
Version
3.01
Arch
OS support
MS-DOS
Size
56.354KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1988
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

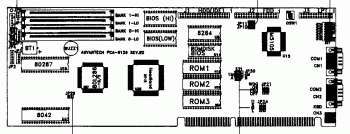

image1 Image 1 of 2 (Advantech)
image2 Image 2 of 2
