Aewin AW-E652
Logs
chipChipset
cpuSocket
EBGA368
speedFSB speeds
66MHz100MHz133MHz
moboForm factor
ECX/Biscuit SBC 3.5" (max 146 x 105 mm)
dimDimensions
145 mm x 102 mm
ramMax VRAM size
32MB
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM type
144-pin SDR SO-DIMM
pwrPSU connector
OEM/Proprietary
connI/O ports
1x
CF Card Slot
1x
Floppy interface
1x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
Serial
4x
USB 1.x
1x
VGA
cardExpansion slots
1x
32-bit mini-PCI
notes Notes

AW-E652C10VB EZRA-800MHz CPU, LVDS/LCD/CRT, LAN,CF Socket AW-E652C10VA EDEN-667MHz CPU, LVDS/LCD/CRT, LAN,CF Socket AW-E652C10VC EDEN-400MHz CPU, LVDS/LCD/CRT, LAN,CF Socket

Last updated 2023-05-29T14:40:13Z
Board info score is 9.6/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/18/2002-8606-686B-6A6LLBG9C-A1
Note
Core version
6.00PG
BIOS version
Logs
drv 12 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
5.719.0325.2009
Arch
x86
OS support
Linux MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Windows 2000 Windows 7 Windows 9x Windows Vista Windows XP/2k3
Size
39.488MB
Filename
Name
Version
V5.00
Arch
x86 , PPC
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Size
3.343MB
Filename
Name
Version
4.43V
Arch
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.058MB
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
227.749KB
Filename
Name
Version
5.70d
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
3.925MB
Filename
Name
Version
V3.00a
Arch
x86
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.867MB
Filename
Name
Version
13.01.03
Arch
OS support
Windows 9x
Size
5.156MB
Filename
Name
Version
10.10.20
Arch
OS support
Windows NT 4.0
Size
3.663MB
Filename
Name
Version
13.00.49
Arch
OS support
Windows 9x
Size
4.792MB
Filename
Name
Version
11.10.09
Arch
OS support
Windows NT 4.0
Size
Empty
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Size
4.28MB
Filename
Version
Arch
x86
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
4.253MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-04
File
Logs
Chip
Release date
1999-03
File
Logs
Chip
Release date
2010-01
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs

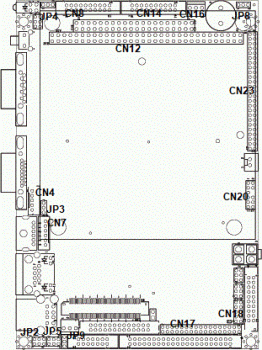

image1 Image 1 of 3 (evasive)
image2 Image 2 of 3

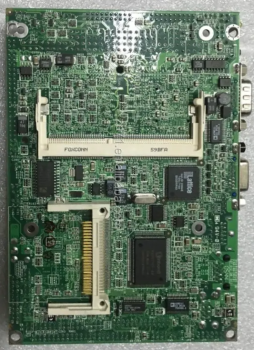

image3 Image 3 of 3
