ALi AP715DS3 Ver 2.0 (ALADDiN-P4 reference board)
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speed
400MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305 mm x 235 mm
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX P4 connector 12v (4-pin P4) ATX 1.x (20-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
4x
USB 1.x
cardExpansion slots
5x
32-bit PCI
1x
Universal AGP
notes Notes

Iwill P4DA is based on this board so its BIOS is probably compatible although it has not been tested.

Last updated 2026-01-18T15:22:55Z
Board info score is 9.2/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
reference board bios
Core version
6.00PG
BIOS version
v.ap01086t
Logs
POST string
11/12/2001
Note
reference board bios
Core version
6.00PG
BIOS version
AP12076t
Logs
drv 17 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
4.05.1110 (VxD) / 1.53 (NT4)
Arch
x86
OS support
Windows 9x Windows NT 4.0
Size
2.755MB
Filename
Name
Version
4.05.1109 (VxD) / 5.12.01.5170 (WDM) / 1.5 (NT4)
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
17.116MB
Filename
Name
Version
5.12.01.5124
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
3.774MB
Filename
Name
Version
0.14.7
Arch
x86
OS support
Linux
Size
27.876KB
Filename
Name
Version
4.05.1109
Arch
x86
OS support
Windows 9x Windows NT 4.0
Size
16.169MB
Filename
Name
Version
5.12.01.5126
Arch
x86
OS support
Windows 2000 Windows 9x
Size
3.213MB
Filename
Name
Version
2.20
Arch
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
10.074MB
Filename
Name
Version
1.98
Arch
x86
OS support
MS-DOS
Size
64.857KB
Filename
Name
Version
4.03
Arch
x86
OS support
Linux
Size
210.221KB
Filename
Name
Version
2.23
Arch
x86
OS support
Windows NT 4.0
Size
62.244KB
Filename
Name
Version
4.06.1096
Arch
x86
OS support
Windows 9x
Size
1.773MB
Filename
Name
Version
5.12.01.0639
Arch
x86
OS support
Windows 9x
Size
3.064MB
Filename
Name
Version
2.30
Arch
x86
OS support
Windows NT 4.0
Size
156KB
Filename
Name
Version
5.21.01.643
Arch
x86
OS support
Windows 2000 Windows 9x
Size
3.203MB
Filename
Name
Version
5.12.01.0639
Arch
x86
OS support
Windows XP/2k3
Size
3.066MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000
Size
26.215KB
Filename
Version
Arch
x86
OS support
Windows 2000
Size
3.066MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

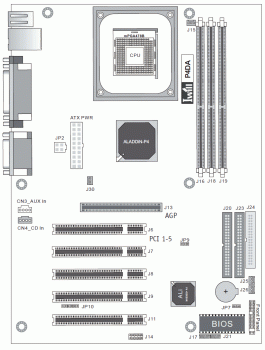

image1 Image 1 of 6 (evasive)
image2 Image 2 of 6

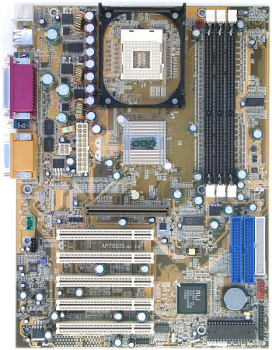

image3 Image 3 of 6 (iXBT)

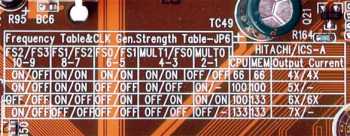

image4 Image 4 of 6
image5 Image 5 of 6
image6 Image 6 of 6 (evasive)
