Arcom SBC-GX1
Chipset
Socket
FSB speed 33MHz
Form factorEBX/Little Board/Biscuit SBC 5.25" (max 203 x 146 mm)
Dimensions203mm x 146mm
Max VRAM size4MB
Cache
None/Integrated in the CPU
Max RAM size
256MB288MB(with onboards DRAM)
RAM type 144-pin SDR SO-DIMM
PSU connector
Empty
I/O ports1x
CF Card Slot
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
Serial
4x
USB 1.x
Expansion slots1x
32-bit PCI
1x
PC/104
Notes
SBC-GX1-M0-F0 (Geode GX1 300Mhz, no DRAM, no Flash)
SBC-GX1-M32-F0 (Geode GX1 300Mhz, 32MB DRAM, no Flash)
SBC-GX1-M0-F16 (Geode GX1 300Mhz, no DRAM, 16MB Flash)
SBC-GX1-M32-F16 (Geode GX1 300Mhz, 32MB DRAM, 16MB Flash)
Uses EBX power supply connector
Has PC/104 expansion interface
Last updated 2025-01-04T15:56:14Z
Board info score is 7.6/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
-> Video
CPU family support
No BIOS files available
9 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
4.10.01.1305
Arch
OS support
Windows 3.1x
Windows NT 4.0
Size
363.183KB
Filename
Name
Version
4.00.090.008
Arch
x86
OS support
Windows 9x
Windows NT 4.0
Size
23.054KB
Filename
Name
Version
5.0.140.2
Arch
x86
OS support
Windows 9x
Size
85.872KB
Filename
Name
Version
5.0.140.2
Arch
x86
OS support
Windows 2000
Size
39.887KB
Filename
Name
Version
2.11
Arch
x86
OS support
Empty
Size
35.798KB
Filename
Name
Version
N/A
Arch
x86
OS support
Empty
Size
2.098KB
Filename
Name
Version
5.0.140.2
Arch
x86
OS support
Windows NT 4.0
Size
45.021KB
Filename
Name
Version
5.0.140.2
Arch
x86
OS support
Windows XP/2k3
Size
39.727KB
Filename
Name
Version
N/A
Arch
x86
OS support
Empty
Size
80.126KB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-09
File
Logs

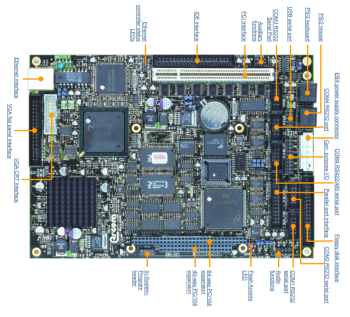

Image 1 of 3

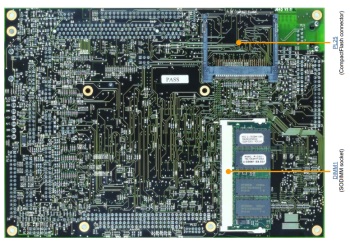

Image 2 of 3
Image 3 of 3
