ASRock K7Upgrade-880
Chipset
Sockets
FSB speeds 200MHz266MHz333MHz400MHz800MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 216mm
Cache
None/Integrated in the CPU
Max RAM size
4GB(Socket 462)2GB(Socket 754)
RAM type DDR UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
8x
USB 2.0
Expansion slots2x
1.5V AGP
3x
32-bit PCI
1x
ASRock Future CPU Port
Notes

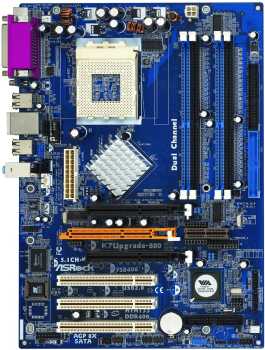

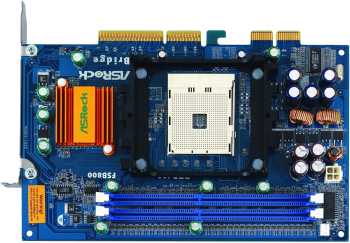

Baseboard uses VIA KT880, CPU Upgrade board uses VIA K8T800. Only of the two Socket 462 motherboards with a Socket 754 CPU Upgrade path. Only one of the two AGP slots are usable, one for the Socket 462 chipset, the other for the Socket 754 Upgrade platform
Last updated 2026-02-16T12:58:54Z
Board info score is 9/10
Chips
-> Chipset part
-> Audio
-> Network
CPU family support
- AMD K8 - Athlon 64
- AMD K7 - Athlon XP (Palomino)
- AMD K7 - Athlon XP (Thoroughbred)
- AMD K7 - Athlon XP (Barton)
- AMD K7 - Athlon (Thunderbird)
- AMD K8 - Sempron
- AMD K7 - Duron (Morgan)
- AMD K7 - Athlon MP (Palomino)
- AMD K7 - Sempron (Thoroughbred)
- AMD K7 - Duron (Applebred)
- AMD K7 - Geode NX (Thoroughbred)
- AMD K7 - Athlon MP (Thoroughbred)
- AMD K7 - Sempron (Barton)
- AMD K7 - Sempron (Thorton)
- AMD K7 - Athlon XP (Thorton)
- AMD K7 - Athlon MP (Barton)
- AMD K7 - Duron (Spitfire)
6 BIOS files available
AMI - 6 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
10 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
5.70d
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Size
3.925MB
Filename
Name
Version
3.32
Arch
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows Vista
Windows XP/2k3
Size
4.068MB
Filename
Name
Version
5.40A
Arch
x86
, x64
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
10.793MB
Filename
Name
Version
2.56
Arch
x86
OS support
Windows 2000
Windows 9x
Size
13.076MB
Filename
Name
Version
V5.50b
Arch
x86
OS support
Windows 2000
Windows NT 4.0
Windows Vista
Windows XP/2k3
Size
392.263KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
12.683MB
Filename
Version
Arch
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.369MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
, x64
OS support
MS-DOS
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Size
6.215MB
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
6.941MB
Filename
Version
Arch
x86
OS support
Linux
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
UnixWare
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
4.26MB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Image 1 of 6 (Nitrolack)
Image 2 of 6 (ASRock)
Image 3 of 6 (Nitrolack)
Image 4 of 6 (ASRock)
Image 5 of 6 (Nitrolack)
Image 6 of 6 (Nitrolack)
