AST Bravo MS-T 6233
Logs
chipChipset
cpuSocket
Slot 1 (Slot-242)
speedFSB speed
66MHz
moboForm factor
NLX (max 229 x 345 mm)
dimDimensions
229 x 345 mm
ramMax VRAM size
4MB
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
4x
16-bit ISA
3x
32-bit PCI
wrench Known issues

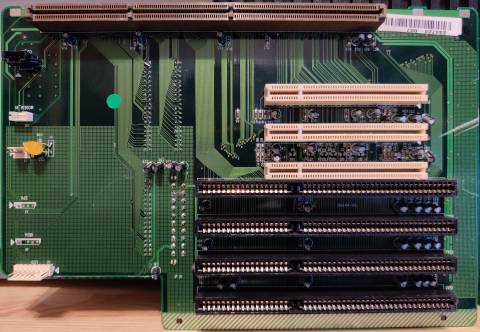

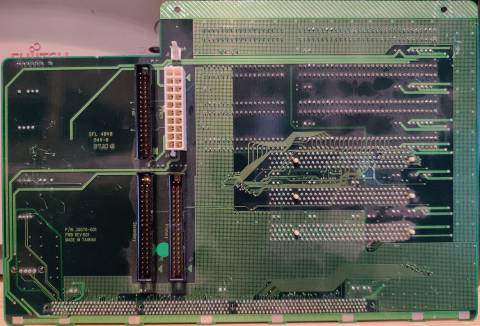

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-07-24T16:47:24Z
Board info score is 7.8/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
DEVEL60J 10/17/97 15:56:44
Core version
4.0 Release 6.0 07C
BIOS version
Logs
drv 18 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
3.20.1008
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
1.386MB
Filename
Name
Version
6.2
Arch
x86
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Size
64.29MB
Filename
Name
Version
3.00
Arch
x86
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Size
1.167MB
Filename
Name
Version
2003
Arch
x86
OS support
MS-DOS OS/2 2.x
Size
554.797KB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 2000
Size
12.279MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.422MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.693MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.525MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.909MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows NT 4.0
Size
7.553MB
Filename
Name
Version
11.1
Arch
x86 , x64
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Size
36.353MB
Filename
Name
Version
3.7B / 3.7D
Arch
x86
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Size
1.58MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 9x
Size
577.777KB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
569.737KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x
Size
1.54MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
2.236MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 9x
Size
1.615MB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
517.009KB
Filename

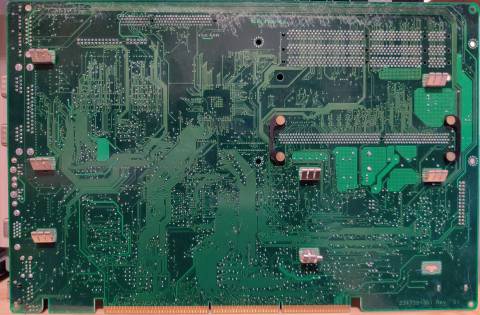

image1 Image 1 of 4 (Eric Voirin (oerg866))
image2 Image 2 of 4 (Eric Voirin (oerg866))
image3 Image 3 of 4 (Eric Voirin (oerg866))
image4 Image 4 of 4 (Eric Voirin (oerg866))
