ASUS A7S8X-MX (Rev. 1.01)
Chipset
Socket
FSB speeds 200MHz266MHz333MHz
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 198mm
Max VRAM size256MB
Cache
None/Integrated in the CPU
Max RAM size
2GB
RAM type DDR UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
8x
USB 2.0
1x
VGA
Expansion slots1x
1.5V AGP
2x
32-bit PCI
Last updated 2026-02-18T10:20:30Z
Board info score is 9.8/10
Chips
-> Chipset part
-> Audio
-> Network
CPU family support
- AMD K7 - Athlon XP (Palomino)
- AMD K7 - Athlon XP (Thoroughbred)
- AMD K7 - Athlon XP (Barton)
- AMD K7 - Athlon (Thunderbird)
- AMD K7 - Duron (Morgan)
- AMD K7 - Athlon MP (Palomino)
- AMD K7 - Sempron (Thoroughbred)
- AMD K7 - Duron (Applebred)
- AMD K7 - Geode NX (Thoroughbred)
- AMD K7 - Athlon MP (Thoroughbred)
- AMD K7 - Sempron (Barton)
- AMD K7 - Sempron (Thorton)
- AMD K7 - Athlon XP (Thorton)
- AMD K7 - Athlon MP (Barton)
- AMD K7 - Duron (Spitfire)
3 BIOS files available
Award - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
7 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
3.73
Arch
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
Empty
Filename
Name
Version
3.93
Arch
x86
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
Empty
Filename
Name
Version
1.21
Arch
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
Empty
Filename
Name
Version
2.04A
Arch
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
Empty
Filename
Name
Version
4.11A
Arch
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
Empty
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
26.561MB
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
22.246MB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs

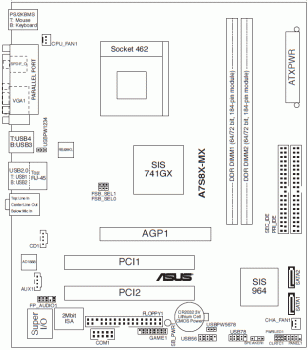

Image 1 of 5 (ASUS)

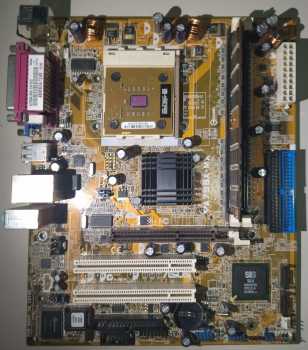

Image 2 of 5 (E5150)
Image 3 of 5 (ColesyAJ)
Image 4 of 5 (E5150)
Image 5 of 5 (E5150)
