ASUS NRL-LS
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speed
400MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
307mm x 244mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
External SCSI
1x
Floppy interface
3x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
4x
USB 1.x
1x
VGA
cardExpansion slots
5x
64-bit PCI
notes Notes

Although ASUS specifies this board as ATX, the board is very slightly taller than maximum ATX spec size (305mm vs 307mm).

Top 4 64-bit PCI slots are 3V, while the fifth slot is 5V.

Also includes optional Adaptec AIC-7892X Ultra SCSI controller.

Third IDE Channel has PIO mode 3/4 support

Last updated 2026-02-19T20:57:45Z
Board info score is 9.6/10
bios 3 BIOS files available

vendor Award - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/29/2003-CMIC-SL/CSB6/NS417-NRL-LS
Note
Core version
v6.0
BIOS version
Logs
POST string
10/25/2002-CMIC-SL/CSB6/NS417-NRL-LS
Note
Core version
v6.0
BIOS version
Logs
POST string
09/30/2002-CMIC-SL/CSB6/NS417-NRL-LS
Note
Core version
v6.0
BIOS version
Logs
drv 16 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
4.13.1.2655
Arch
OS support
Windows 9x
Size
10.379MB
Filename
Name
Version
5.00.2195.4030
Arch
x86
OS support
Windows 2000
Size
5.855MB
Filename
Name
Version
4.12.2647
Arch
x86
OS support
Windows 9x
Size
8.498MB
Filename
Name
Version
5.10.2600.6009
Arch
OS support
Windows XP/2k3
Size
7.801MB
Filename
Name
Version
1.10
Arch
x86
OS support
MS-DOS Windows 9x Windows NT 4.0
Size
2.008MB
Filename
Name
Version
6.2
Arch
x86
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Size
64.29MB
Filename
Name
Version
2003
Arch
x86
OS support
MS-DOS OS/2 2.x
Size
554.797KB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 2000
Size
12.279MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.422MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.693MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.525MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.909MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows NT 4.0
Size
7.553MB
Filename
Name
Version
11.1
Arch
x86 , x64
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Size
36.353MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
Windows 2000
Size
5.797MB
Filename
Version
Arch
OS support
Windows NT 4.0
Size
5.632MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001
File
Logs
Chip
Release date
2003-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

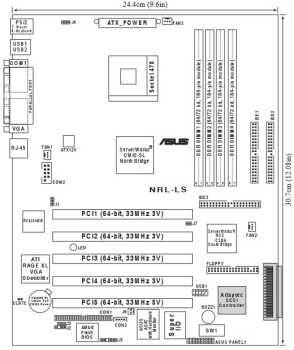

image1 Image 1 of 3 (ASUS)
image2 Image 2 of 3 (ASUS)
image3 Image 3 of 3 (ASUS)
