BCM FM530
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz55MHz60MHz66MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
Empty
ramMax VRAM size
2MB
chipCache
64KB
ramMax RAM size
128MB
ramRAM type
SDR UDIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
Empty
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

board number 20130

Board exists in 3 different variants with 3 different video chips, namely S3 Trio32, S3 Virge/DX and S3 Trio64V2/DX.
Pay attention before you flash a new bios what video chip you have, your board may not show video if you flash the wrong version!

Last updated 2026-03-01T05:28:31Z
Board info score is 9/10
bios 7 BIOS files available

vendor Award - 7 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/03/97-i430VX-SMC37C93-2A59GB3JC-00
Note
AST Trio 64V2/DX-GX
Core version
4.51PG
BIOS version
Logs
POST string
09/15/97-i430VX-SMC37C93-2A59GB3JC-00
Note
AST Trio 64V2/DX-GX
Core version
4.51PG
BIOS version
Logs
POST string
05/12/97-i430VX-SMC37C93-2A59GB3JC-00
Note
AST Trio32/64/64V+
Core version
4.51PG
BIOS version
Logs
POST string
04/08/97-i430VX-SMC37C93-2A59GB3JC-00
Note
AST Trio32/64/64V+
Core version
4.51PG
BIOS version
Logs
POST string
12/03/97-i430VX-SMC37C93-2A59GB3JC-00
Note
AST ViRGE/DX-GX
Core version
4.51PG
BIOS version
Logs
POST string
09/15/97-i430VX-SMC37C93-2A59GB3JC-00
Note
AST ViRGE/DX-GX
Core version
4.51PG
BIOS version
Logs
POST string
04/28/98-i430VX-SMC37C93-2A59GB3JC-00
Note
Core version
4.51PG
BIOS version
Logs
drv 17 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
194.993KB
Filename
Name
Version
N/A
Arch
x86
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Size
281.527KB
Filename
Name
Version
4.10.1.3000
Arch
x86
OS support
Windows 2000 Windows 9x
Size
89.072KB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows 9x
Size
2.81MB
Filename
Name
Version
PV2860
Arch
x86
OS support
Windows 9x
Size
932.754KB
Filename
Name
Version
2.00
Arch
x86
OS support
Windows 3.1x
Size
880.689KB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows NT 3.5x
Size
1.698MB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows NT 4.0
Size
1.701MB
Filename
Name
Version
3.00
Arch
x86
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Size
1.167MB
Filename
Name
Version
2.41.07
Arch
x86
OS support
Windows 9x
Size
183.603KB
Filename
Name
Version
1.70.04
Arch
x86
OS support
Windows 3.1x
Size
606.14KB
Filename
Name
Version
1.6
Arch
x86
OS support
OS/2 1.x OS/2 2.x OS/2 Warp 3.x
Size
1.211MB
Filename
Name
Version
2.01.09
Arch
x86
OS support
Windows 9x
Size
124.185KB
Filename
Name
Version
2.00.18
Arch
x86
OS support
Windows NT 4.0
Size
177.732KB
Filename
Name
Version
3.7B / 3.7D
Arch
x86
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Size
1.58MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 9x
Size
577.777KB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
569.737KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-02
File
Logs
Chip
Release date
1995-07
File
Logs

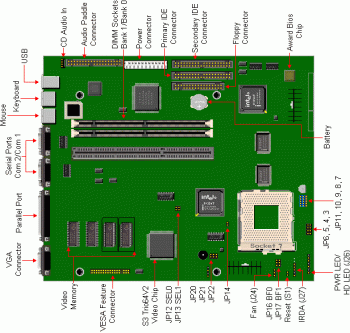

image1 Image 1 of 4 (Packard Bell)

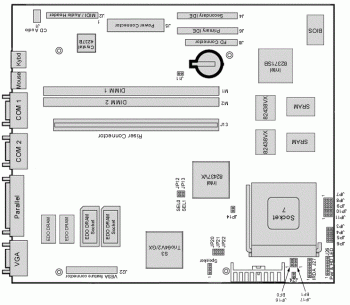

image2 Image 2 of 4 (BCM)
image3 Image 3 of 4 (Computer Retro)

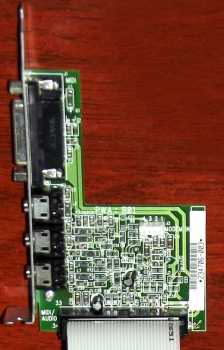

image4 Image 4 of 4 (Computer Retro)
