Boser HS-4500
Chipset
Socket
FSB speeds 60MHz66MHz75MHz83MHz100MHz
Form factorEBX/Little Board/Biscuit SBC 5.25" (max 203 x 146 mm)
Dimensions203mm x 146mm
Max VRAM size2MB
Cache
512KB
Max RAM size
384MB
RAM types 72-pin FPM72-pin EDOSDR UDIMM168-pin EDO UDIMM72-pin BEDO
PSU connector
Also known as
- Macrotek MSPC-4500
- Formosa Industrial LMB-4500
I/O ports1x
Disk-on-Chip Socket
1x
Floppy interface
1x
Gameport
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
Expansion slotsEmpty
Known issues
- DALLAS RTC coin cell empty
The motherboard's Real-Time Clock (RTC) chip contains a coin cell that may have drained, causing the loss of CMOS settings. This can result in an inability to save settings, causing system instability or failure to boot. To fix this, the RTC chip can be replaced with an equivalent or repaired by cutting into it and soldering on a new external coin cell holder. Replacement guides are available at https://github.com/necroware/nwX287 or https://github.com/necroware/nw12887, depending on the actual chip used.
Last updated 2025-08-17T12:38:16Z
Board info score is 8.9/10
Chips
-> Chipset part
-> Audio
-> Video
5 BIOS files available
Award - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
30 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
1.0.1.2
Arch
OS support
Windows 2000
Windows XP/2k3
Size
30.369KB
Filename
Name
Version
1.20
Arch
OS support
Windows 9x
Size
615.46KB
Filename
Name
Version
3.56
Arch
OS support
Windows 9x
Windows NT 4.0
Size
880.299KB
Filename
Name
Version
1.00
Arch
x86
OS support
Windows 9x
Size
1.465MB
Filename
Name
Version
2.13
Arch
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
7.349MB
Filename
Name
Version
2.20
Arch
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
10.074MB
Filename
Name
Version
1.3.2
Arch
x86
OS support
MS-DOS
Windows 3.1x
Size
1,019.194KB
Filename
Name
Version
2.2.7
Arch
x86
OS support
OS/2 Warp 3.x
OS/2 Warp 4.x
Size
1.11MB
Filename
Name
Version
3.06
Arch
x86
OS support
Windows 9x
Size
148.748KB
Filename
Name
Version
4.05
Arch
x86
OS support
Windows 9x
Size
251.321KB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows 9x
Size
1.653MB
Filename
Name
Version
1.29
Arch
x86
OS support
Windows NT 4.0
Size
158.496KB
Filename
Name
Version
1.14
Arch
x86
OS support
Windows NT 3.5x
Size
41.358KB
Filename
Name
Version
1.29
Arch
x86
OS support
Windows NT 4.0
Size
304.04KB
Filename
Name
Version
V4.12.01.1165
Arch
OS support
Windows 9x
Size
1.016MB
Filename
Name
Version
4.05.1031
Arch
x86
OS support
Windows 9x
Size
1,007.694KB
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
111.854KB
Filename
Name
Version
5.0.212
Arch
x86
OS support
Empty
Size
1.36MB
Filename
Name
Version
6.12.10.3055
Arch
x86
OS support
Windows 2000
Windows XP/2k3
Size
52.956KB
Filename
Name
Version
4.17.24
Arch
x86
OS support
Windows 3.1x
Size
215.422KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
Size
Filename
4 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1998-01
File
Logs

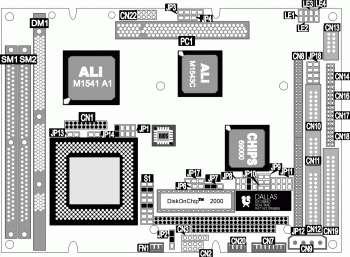

Image 1 of 2 (Boser)
Image 2 of 2 (Boser)
