DEC CELEBRIS GL (VER. 2), VENTURIS GL (VER. 2)
Logs
chipChipset
cpuSocket
Socket 8 (PGA387)
speedFSB speeds
60MHz66MHz
moboForm factor
OEM / Proprietary
dimDimensions
330mm x 218mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
192MB
ramRAM type
72-pin EDO
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
  • DEC Celebris GL 6200
  • DEC Digital PC 5400
connI/O ports
1x
3.5mm Audio Combo
1x
Coax 10Base-2 LAN
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
2x
16-bit ISA
2x
32-bit PCI
notes Notes

Integrated Audio was optional and lives on the riser board when present. While both the ethernet and audio chips live on the riser, the external ports live on separate boards which plug into the riser The audio board contains the amplifier, game port and wavetable interface. While the integrated DEC 21140 ethernet is 10/100 capable, 100Mbps operation was optional - some machines had a 10baseT/10base2 board, while others had a 10Base-T/100Base-TX board. Models without integrated Matrox video were available with S3 video on the riser board.

Last updated 2025-10-29T20:19:36Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor Phoenix - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
system bios
Core version
BIOS version
Logs
POST string
Note
crisis recovery diskette
Core version
BIOS version
Logs
drv 22 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
2.62
Arch
OS support
MS-DOS OS/2 2.x Windows 3.1x Windows 9x
Size
129.983KB
Filename
Name
Version
5.05
Arch
OS support
Windows 2000 Windows 9x Windows NT 4.0
Size
538.19KB
Filename
Name
Version
2.61
Arch
x86
OS support
MS-DOS
Size
37.956KB
Filename
Name
Version
3.11
Arch
x86
OS support
NetWare Server 3 NetWare Server 4 Netware Client32
Size
390.931KB
Filename
Name
Version
4.2.2
Arch
OS support
UnixWare
Size
182.621KB
Filename
Name
Version
3.00
Arch
x86
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Size
1.167MB
Filename
Name
Version
3.51.000
Arch
x86
OS support
MS-DOS
Size
704.101KB
Filename
Name
Version
2.51
Arch
x86
OS support
Windows NT 3.5x
Size
639.919KB
Filename
Name
Version
2.58
Arch
x86
OS support
OS/2 1.x
Size
1.25MB
Filename
Name
Version
2.51
Arch
x86
OS support
Windows NT 3.5x
Size
639.919KB
Filename
Name
Version
4.05.02
Arch
x86
OS support
Windows 9x
Size
358.095KB
Filename
Name
Version
2.41.07
Arch
x86
OS support
Windows 9x
Size
183.603KB
Filename
Name
Version
1.70.04
Arch
x86
OS support
Windows 3.1x
Size
606.14KB
Filename
Name
Version
1.6
Arch
x86
OS support
OS/2 1.x OS/2 2.x OS/2 Warp 3.x
Size
1.211MB
Filename
Name
Version
2.01.09
Arch
x86
OS support
Windows 9x
Size
124.185KB
Filename
Name
Version
2.00.18
Arch
x86
OS support
Windows NT 4.0
Size
177.732KB
Filename
Name
Version
3.7B / 3.7D
Arch
x86
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Size
1.58MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 9x
Size
577.777KB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
569.737KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 3.1x
Size
2.292MB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
1.581MB
Filename
Version
Arch
x86
OS support
Windows NT 4.0
Size
1.571MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-12
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-02-29
File
Logs
Chip
Release date
1996-07
File
Logs
Chip
Release date
1996-02
File
Logs
Chip
Release date
1995-07
File
Logs
Family
Release date
File
Logs
Family
Release date
1997
File
Logs
Family
Release date
1998-05
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1996
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1997-05
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1999-01
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-02
File
Logs
image1 Image 1 of 19 (Microhouse)
image2 Image 2 of 19 (davidg)

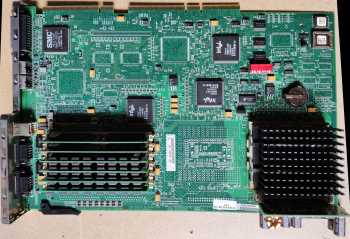

image3 Image 3 of 19 (KIDH)
image4 Image 4 of 19 (davidg)
image5 Image 5 of 19 (BreakPoint)
image6 Image 6 of 19 (davidg)
image7 Image 7 of 19 (davidg)
image8 Image 8 of 19 (davidg)
image9 Image 9 of 19 (davidg)

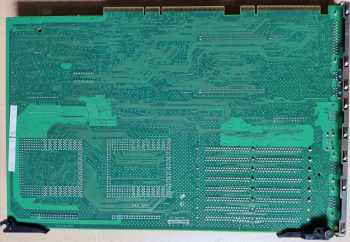

image10 Image 10 of 19 (KIDH)
image11 Image 11 of 19 (davidg)
image12 Image 12 of 19 (davidg)
image13 Image 13 of 19 (davidg)
image14 Image 14 of 19 (BreakPoint)
image15 Image 15 of 19 (KIDH)

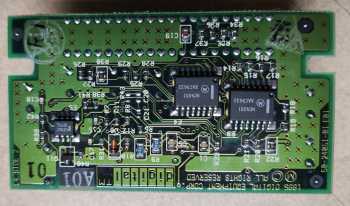

image16 Image 16 of 19 (KIDH)
image17 Image 17 of 19 (Microhouse)
image18 Image 18 of 19 (Microhouse)
image19 Image 19 of 19
