DFI G486VPA (REV. A+)
Chipset
Socket
FSB speeds 20MHz25MHz33MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions280mm x 220mm
Cache
128KB256KB512KB1MB
Max RAM size
128MB
RAM type 72-pin FPM
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
4x
32-bit PCI
1x
32-bit VLB
Notes
- Doesn't support EDO RAM, won't POST with it.
- Unofficially also supports CPUs with frequencies 120 and 133MHz.
- A+ revision most likely doesn't have the '+' sign printed anywhere on the board, so it can barely be identified.
Last updated 2023-07-11T12:43:59Z
Board info score is 9.1/10
Chips
-> Chipset part
-> Bridge Interface
CPU family support
6 BIOS files available
Award - 6 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Image 1 of 3 (Microhouse)
Image 2 of 3

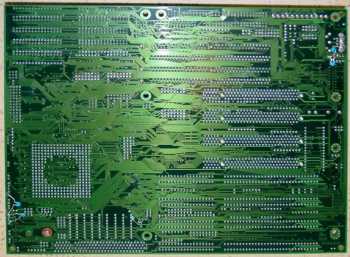

Image 3 of 3
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
