ECS 386A
Chipset
FSB speeds 20MHz25MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions330mm x 225mm
Max RAM size
RAM type
CPU sockets
PSU connector
I/O ports1x
AT Keyboard
Expansion slots5x
16-bit ISA
3x
8-bit ISA
Last updated 2025-06-15T21:14:25Z
Board info score is 9.4/10
Chips
-> Chipset part
CHIPS and Technologies 82C301 (Bus Controller)
CHIPS and Technologies 82C302
CHIPS and Technologies 82C303 (Address Buffer (High))
CHIPS and Technologies 82C304 (Address Buffer (Low))
CHIPS and Technologies 82C305 (Data Buffer)
CHIPS and Technologies 82C306 (Control Signal Buffer)
(multiple brand) 82C206 (DMA, IRQ, timer and RTC ctrl.)
-> Human Interface
2 BIOS files available
AMI - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

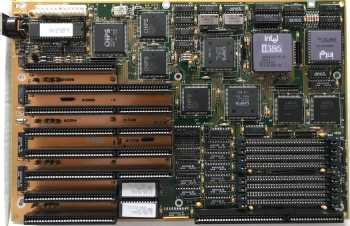

Image 1 of 7 (Microhouse)

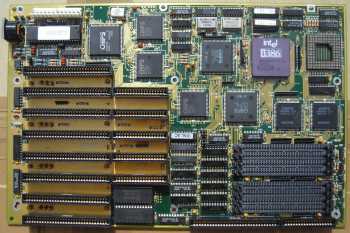

Image 2 of 7 (mtgmackid)

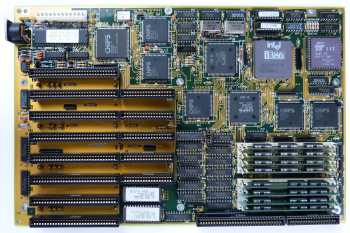

Image 3 of 7 (TheMobRules)
Image 4 of 7 (Retronn aka Enigma)
Image 5 of 7
Image 6 of 7 (Predator99)
Image 7 of 7 (Predator99)
