EPoX/ProNiX EP-8K9A2+
Chipset
Socket
FSB speeds 200MHz266MHz333MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
3GB
RAM type DDR UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
4x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
Serial
6x
USB 2.0
Expansion slots1x
1.5V AGP
6x
32-bit PCI
Notes
The floppy header is shown incorrectly in the manual, rotated 180 degrees.
Last updated 2026-03-04T20:18:49Z
Board info score is 9.8/10
Chips
-> Chipset part
-> Audio
-> Network
-> RAID ctrl.
-> SATA ctrl.
-> Sensing / Monitoring
-> Super I/O
CPU family support
- AMD K7 - Athlon XP (Palomino)
- AMD K7 - Athlon XP (Thoroughbred)
- AMD K7 - Athlon XP (Barton)
- AMD K7 - Athlon (Thunderbird)
- AMD K7 - Duron (Morgan)
- AMD K7 - Athlon MP (Palomino)
- AMD K7 - Sempron (Thoroughbred)
- AMD K7 - Duron (Applebred)
- AMD K7 - Geode NX (Thoroughbred)
- AMD K7 - Athlon MP (Thoroughbred)
- AMD K7 - Sempron (Barton)
- AMD K7 - Sempron (Thorton)
- AMD K7 - Athlon XP (Thorton)
- AMD K7 - Athlon MP (Barton)
- AMD K7 - Duron (Spitfire)
2 BIOS files available
Award - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/25/2002-KT400-8235-6A6LYPA9C-00
Note
Core version
6.00PG
BIOS version
Logs
37 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
2.352.7.126
Arch
x86
, x64
OS support
Windows Vista
Size
79.442KB
Filename
Name
Version
2.344
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
137.612KB
Filename
Name
Version
A4.06
Arch
x86
OS support
Windows 2000
Windows XP/2k3
Size
17.867MB
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
26.809KB
Filename
Name
Version
1.2.0.5
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.483MB
Filename
Name
Version
1.3.68.2
Arch
x86
OS support
Windows 2000
Windows Vista
Windows XP/2k3
Size
127.754KB
Filename
Name
Version
1.3.61.0
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows Vista
Windows XP/2k3
Size
122.511KB
Filename
Name
Version
N/A
Arch
OS support
Windows XP/2k3
Size
26.809KB
Filename
Name
Version
5.70d
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Size
3.925MB
Filename
Name
Version
V3.00a
Arch
x86
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.867MB
Filename
Name
Version
3.32
Arch
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows Vista
Windows XP/2k3
Size
4.068MB
Filename
Name
Version
2.56
Arch
x86
OS support
Windows 2000
Windows 9x
Size
13.076MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
12.683MB
Filename
Version
Arch
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.369MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
, x64
OS support
MS-DOS
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Size
6.215MB
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
6.941MB
Filename
Version
Arch
x86
OS support
Linux
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
UnixWare
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
4.26MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x64
, IA-64
OS support
Windows 7
Windows Vista
Windows XP/2k3
Size
372.031KB
Filename
Version
Arch
x64
, IA-64
OS support
Windows Vista
Windows XP/2k3
Size
352.962KB
Filename
Version
Arch
x64
, IA-64
OS support
Windows Vista
Windows XP/2k3
Size
350.687KB
Filename
Version
Arch
x64
, IA-64
OS support
Windows Vista
Windows XP/2k3
Size
332.262KB
Filename
Version
Arch
x64
, IA-64
OS support
Windows XP/2k3
Size
344.102KB
Filename
Version
Arch
x64
, IA-64
OS support
Windows XP/2k3
Size
253.911KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Size
142.215KB
Filename
Version
Arch
x86
OS support
Windows 2000
Windows Vista
Windows XP/2k3
Size
127.754KB
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows Vista
Windows XP/2k3
Size
137.428KB
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
123.54KB
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
123.144KB
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
102.315KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x64
, IA-64
OS support
Windows Vista
Windows XP/2k3
Size
443.132KB
Filename
Version
Arch
x64
OS support
Windows Vista
Windows XP/2k3
Size
162.732KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
, x64
OS support
Windows 7
Size
6.881MB
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
145.542KB
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
130.023KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
250.848KB
Filename
Version
Arch
x86
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
184.771KB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs

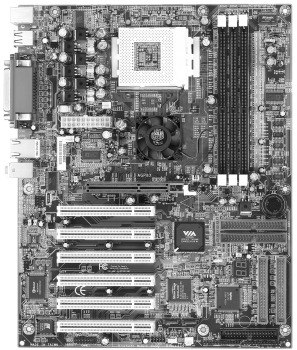

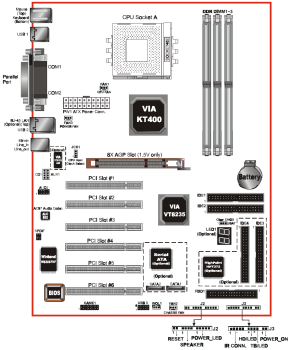

Image 1 of 4 (EPoX/ProNiX)
Image 2 of 4 (Andrew Spode)
Image 3 of 4 (Andrew Spode)
Image 4 of 4
