FIC PT-2003 (REV. A3)
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions289mm x 218mm
Max RAM size
RAM type
PSU connector
Also known as
- Pine Technology PT-2003
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots3x
16-bit ISA
4x
32-bit PCI
Notes
Split voltage operation (for MMX CPUs) requires desoldering the jumper wires from the VRM footprint and installing an appropriate VRM.
Last updated 2025-12-12T12:58:30Z
Board info score is 8.6/10
Chips
-> Chipset part
CPU family support
2 BIOS files available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
Mr. BIOS - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
INTL5UQ
Note
System BIOS for FIC PT-2003 with UMC8669F Super I/O (Intel Triton)
Core version
3.30
BIOS version
Logs
4 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
3.00
Arch
x86
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Size
1.167MB
Filename
Name
Version
3.7B / 3.7D
Arch
x86
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Size
1.58MB
Filename
Version
Arch
OS support
Size
Filename
2 board documents available
Chip
Release date
File
Logs

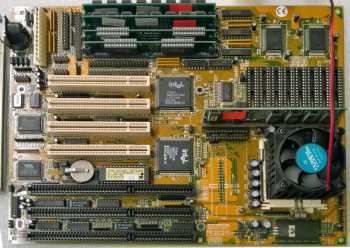

Image 1 of 3 (Microhouse)
Image 2 of 3 (BurnedPinguin)
Image 3 of 3 (BurnedPinguin)
