Foxconn M61PMV
Logs
chipChipset
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 203mm
ramMax VRAM size
256MB
ramMax RAM size
4GB(DDR2-1066)
ramRAM type
  • DDR2 (Unregistered)
ramRAM slot
ramMax RAM size
4GB(DDR2-1066)
tag Also known as
cpuCPU socket
1x
pwrPSU connectors
?x
?x
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
wrench No board specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

notes Notes
  • Supports AM2+ CPUs with BIOS update.
Last updated 2025-06-03T18:37:19Z
Board info score is 9.2/10
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/01/2010-NF-MCP61-6A61KCDHC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/05/2010-NF-MCP61-6A61KCDHC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/04/2009-NF-MCP61-6A61KCDHC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/28/2009-NF-MCP61-6A61KCDHC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/23/2009-NF-MCP61-6A61KCDHC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/08/2008-NF-MCP61-6A61KCDHC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
37.793MB
Filename
Version
Arch
x86
OS support
Windows XP/2k3
Size
50.899MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
image1 Image 1 of 4 (Foxconn)

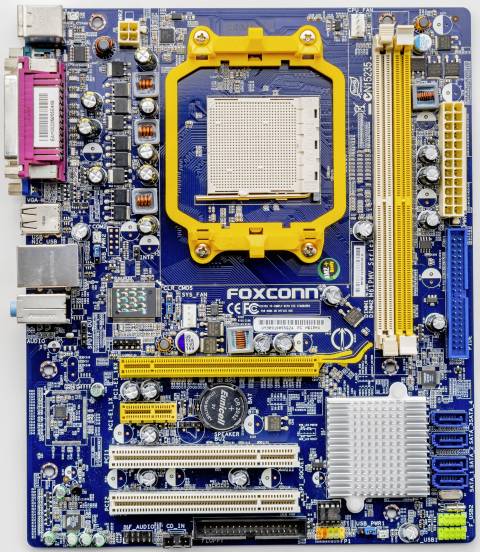

image2 Image 2 of 4 (Motherboard Continuum)

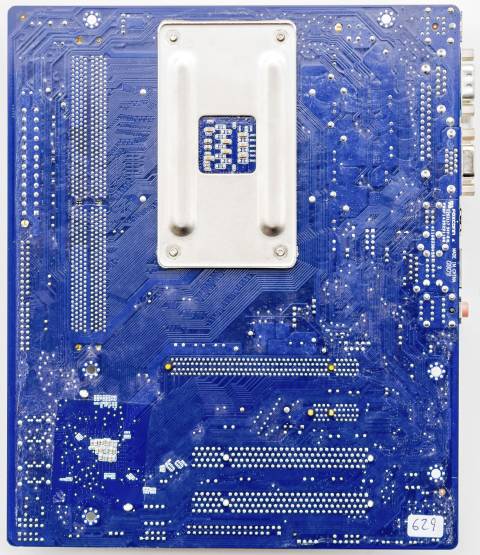

image3 Image 3 of 4 (Motherboard Continuum)

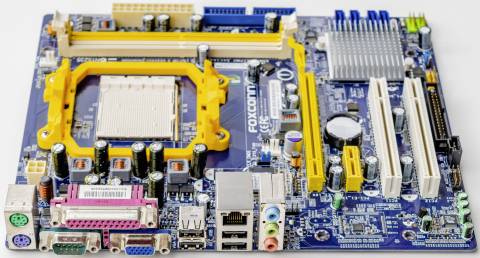

image4 Image 4 of 4 (Motherboard Continuum)
