Gigabyte GA-7DXR
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 245mm
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
Molex (4-pin) ATX 1.x (20-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
4x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 1.x
cardExpansion slots
5x
32-bit PCI
1x
AMR
1x
Universal AGP Pro
notes Notes

Promise RAID controller

Last updated 2023-08-27T23:38:58Z
Board info score is 9.8/10
chip Chips
-> Chipset part
AMD 761 VIA VT82C686B
-> Audio
Creative CT5880 (AudioPCI)
cpufam CPU family support
bios 8 BIOS files available

vendor Award - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
04/12/2002-7DXR-6A6S6G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/31/2001-7DXR-6A6S6G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/19/2001-7DXR-6A6S6G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/24/2001-7DXR-6A6S6G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/17/2001-7DXR-6A6S6G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/27/2001-7DXR-6A6S6G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/15/2003-7DXR-6A6S6G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/26/2001-7DXR-6A6S6G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 11 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
1.30
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
2.657MB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows 9x
Size
4.261MB
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
227.749KB
Filename
Name
Version
5.70d
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
3.925MB
Filename
Name
Version
V3.00a
Arch
x86
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.867MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
609.906KB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
267.58KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Size
4.28MB
Filename
Version
Arch
x86
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
4.253MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
4.618MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0
Size
36.401MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-02
File
Logs
Chip
Release date
File
Logs

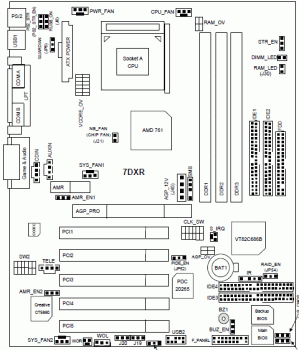

image1 Image 1 of 5 (evasive)
image2 Image 2 of 5 (Karbist)

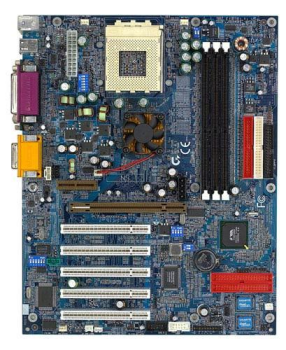

image3 Image 3 of 5

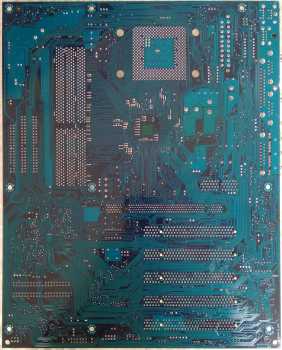

image4 Image 4 of 5 (Karbist)
image5 Image 5 of 5 (Karbist)
