Gigabyte GA-MA69GM-S2H (rev. 1.0)
Chipset
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 244mm
Max VRAM size512MB
Max RAM size
16GB(DDR2-800)
RAM type- DDR2 (Unregistered)
RAM slotMax RAM size
16GB(DDR2-800)
CPU sockets
PSU connectors
I/O ports1x
3.5mm Audio Combo
1x
DVI
3x
FireWire 400
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
1x
TV-Out
1x
Toslink
10x
USB 2.0
1x
VGA
Expansion slots2x
32-bit PCI
1x
PCIe x16
1x
PCIe x4
Last updated 2023-09-18T11:33:53Z
Board info score is 9/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Network
-> Super I/O
7 BIOS files available
Award - 7 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/18/2009-RS690G-SB600-6A669G03C-00
Note
Beta BIOS
Core version
6.00PG
BIOS version
Logs
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006
File
Logs
Chip
Release date
2007-01-09
File
Logs
Chip
Release date
2004-06-04
File
Logs
Chip
Release date
2003-02
File
Logs
Family
Release date
File
Logs

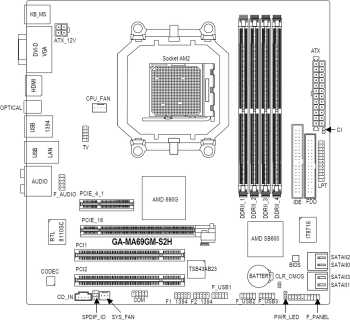

Image 1 of 4 (Gigabyte)
Image 2 of 4 (Gigabyte)

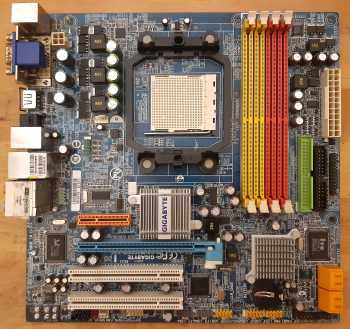

Image 3 of 4 (Carlos S. M.)
Image 4 of 4 (Gigabyte)
