Intel Advanced/RH LPX (Rhinestone)
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
330mm x 228mm
ramMax VRAM size
4MB
chipCache
256KB512KB
ramMax RAM size
512MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9) AT auxiliary 3.3v (6-pin P10)
tag Also known as
connI/O ports
1x
3.5mm Line-In
1x
3.5mm Line-Out
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
1x
PISA
Last updated 2023-12-21T20:55:52Z
Board info score is 9.8/10
bios 8 BIOS files available

vendor AMI - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.00.13.CV2
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.12.CV2
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.10.CV2
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.09.CV2
Note
raw dump from AST board
Core version
Intel
BIOS version
Logs
POST string
1.00.09.CV2
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.09.CV2
Note
AST upgrade disk 1.04
Core version
Intel
BIOS version
Logs
POST string
1.00.07.CV2
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.07.CV2
Note
AST upgrade disk 1.03
Core version
Intel
BIOS version
Logs
drv 11 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
5.0.113
Arch
x86
OS support
Windows NT 4.0
Size
618.253KB
Filename
Name
Version
3.00
Arch
x86
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Size
1.167MB
Filename
Name
Version
3.03
Arch
x86
OS support
Windows 3.1x
Size
3.451MB
Filename
Name
Version
1.12.000
Arch
x86
OS support
Windows 9x
Size
841.765KB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Size
14.627MB
Filename
Name
Version
1.0
Arch
x86
OS support
MS-DOS
Size
1.779MB
Filename
Name
Version
3.7B / 3.7D
Arch
x86
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Size
1.58MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 9x
Size
577.777KB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
569.737KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 9x
Size
1.615MB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
517.009KB
Filename
doc 4 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs
image1 Image 1 of 10 (Microhouse)
image2 Image 2 of 10 (perhenden)

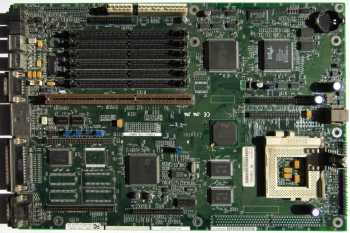

image3 Image 3 of 10 (WDKeeper)

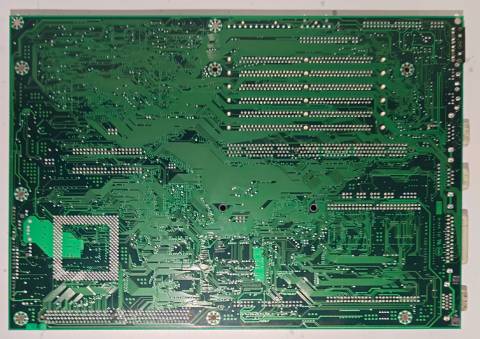

image4 Image 4 of 10 (perhenden)

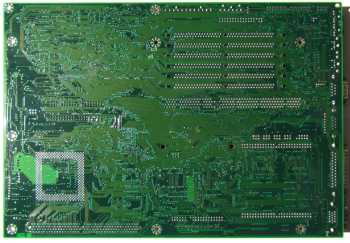

image5 Image 5 of 10 (WDKeeper)
image6 Image 6 of 10 (perhenden)

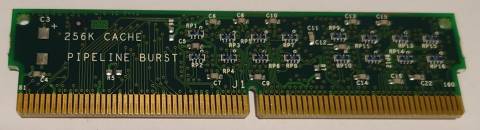

image7 Image 7 of 10 (perhenden)

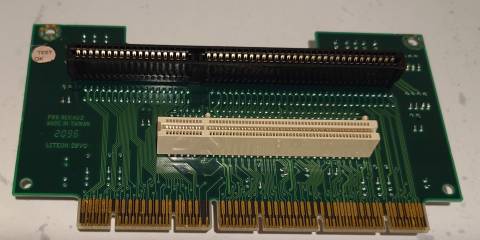

image8 Image 8 of 10 (perhenden)

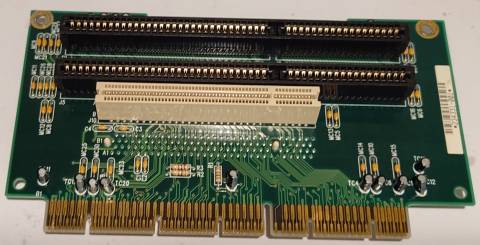

image9 Image 9 of 10 (perhenden)

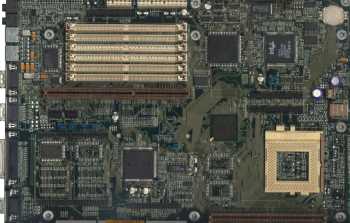

image10 Image 10 of 10
