Intel OR840 (Outrigger)
Logs
chipChipset
cpuSocket
Slot 1 (Slot-242)
speedFSB speeds
100MHz133MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
184-pin RDRAM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
5x
32-bit PCI
1x
Universal AGP Pro
notes Notes

Optional ADI SoundMAX AC97 AD1881 audio controller, only supports FSB 133 CPUs.

Some users reported this board may not be stable with 2 GB of RAM

Last updated 2026-02-13T19:51:21Z
Board info score is 9.8/10
bios 7 BIOS files available

vendor IBM - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
IBM PLJT44A
Core version
Surepath
BIOS version
Logs

vendor AMI - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
OR840703.86E.0255.P04.0103291658
Note
Core version
Intel
BIOS version
Logs
POST string
OR840703.86E.0248.P04.0010091140
Note
Micron OEM (=retail)
Core version
Intel
BIOS version
Logs
POST string
OR840703.86E.0244.P04.0008181100
Note
Micron OEM (=retail)
Core version
Intel
BIOS version
Logs
POST string
OR840700.86E.0225.P03.0004071345
Note
Core version
Intel
BIOS version
Logs
POST string
OR840700.86E.0219.p03.0003081415
Note
Micron OEM (=retail)
Core version
Intel
BIOS version
Logs
POST string
OR840600.86E.0122.P01.9910011410
Note
from an Engineering Sample board
Core version
Intel
BIOS version
Logs
drv 17 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
4.02.0017
Arch
x86
OS support
Windows NT 4.0
Size
5.49MB
Filename
Name
Version
4.10.2225
Arch
x86
OS support
Windows 9x
Size
4.636MB
Filename
Name
Version
5.00.2238
Arch
x86
OS support
Windows 2000 Windows 9x
Size
3.015MB
Filename
Name
Version
5.31.0.0
Arch
OS support
MS-DOS OS/2 2.x Windows 2000 Windows NT 4.0
Size
60.043MB
Filename
Name
Version
6.2
Arch
x86
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Size
64.29MB
Filename
Name
Version
2003
Arch
x86
OS support
MS-DOS OS/2 2.x
Size
554.797KB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 2000
Size
12.279MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.422MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.693MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.525MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.909MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows NT 4.0
Size
7.553MB
Filename
Name
Version
11.1
Arch
x86 , x64
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Size
36.353MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x
Size
1.54MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
2.236MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
Empty
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
1.386MB
Filename
doc 4 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005-08
File
Logs
Chip
Release date
2003-09-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-08
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-10
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
1999-05
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs
doc 1 other file available
Title
File
Logs
Title
IBM Intellistation Enhanced Diagnostics program
File
Logs
image1 Image 1 of 11 (Microhouse)
image2 Image 2 of 11 (limsup)

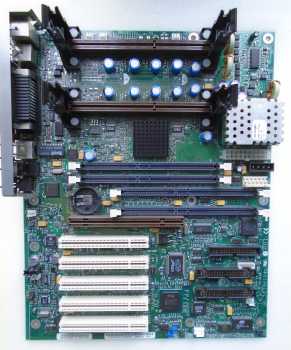

image3 Image 3 of 11 (PC Hoarder Patrol)

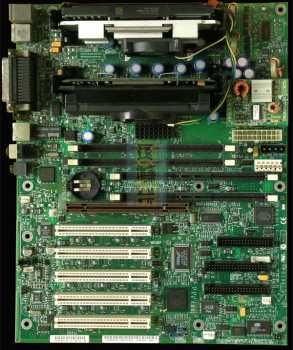

image4 Image 4 of 11 (PCang)
image5 Image 5 of 11 (pshipkov)

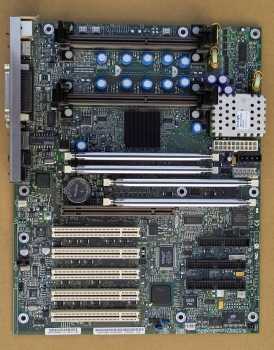

image6 Image 6 of 11 (S2 Sedan)
image7 Image 7 of 11 (limsup)

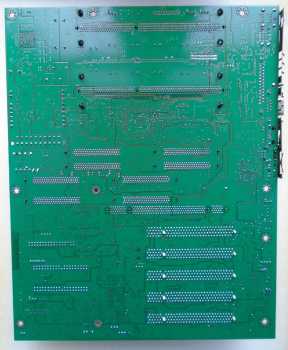

image8 Image 8 of 11 (PC Hoarder Patrol)
image9 Image 9 of 11 (PCang)
image10 Image 10 of 11 (PC Hoarder Patrol)
image11 Image 11 of 11 (PC Hoarder Patrol)
