Intel PR440FX (Providence)
Chipset
Socket
FSB speeds 60MHz66MHz
Form factorATX (max 305 x 244 mm)
Dimensions288mm x 282mm
Cache
None/Integrated in the CPU
Max RAM size
512MB
RAM type 168-pin EDO UDIMM
PSU connector
Multi CPU support2 CPUs
Also known as
- Mitsuba MI-PR
- ICS Computers 686MBPR
- Toshiba Equium 6200M tower
- Gateway MBDSAC097AAWW,MBDSAC098AAWW
- Gateway 4000267
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
Internal SCSI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
Expansion slots1x
16-bit ISA
4x
32-bit PCI
Notes
Officially supports Pentium II Overdrive
Has trouble booting CDROM on IDE. Older CDs with a quad-speed drive may work, more recent OSs and faster drives may not work. If you want to reliably boot CDROMs on this system, either use a bootable floppy, or use a SCSI device.
Gateway support page:
https://web.archive.org/web/20030302143738/http://support.gateway.com/s/MOTHERBD/INTEL/M00267/M00267nv.shtml
Last updated 2025-06-04T13:26:08Z
Board info score is 9.8/10
Chips
-> Chipset part
-> Audio
-> Network
-> SCSI ctrl.
-> Super I/O
CPU family support
6 BIOS files available
AMI - 6 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
23 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
2.10
Arch
x86
OS support
Windows 9x
Size
88.883KB
Filename
Name
Version
3.03
Arch
OS support
MS-DOS
Size
526.484KB
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
194.993KB
Filename
Name
Version
N/A
Arch
x86
OS support
OS/2 Warp 3.x
OS/2 Warp 4.x
Size
281.527KB
Filename
Name
Version
4.10.1.3000
Arch
x86
OS support
Windows 2000
Windows 9x
Size
89.072KB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows 9x
Size
2.81MB
Filename
Name
Version
PV2860
Arch
x86
OS support
Windows 9x
Size
932.754KB
Filename
Name
Version
2.00
Arch
x86
OS support
Windows 3.1x
Size
880.689KB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows NT 3.5x
Size
1.698MB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows NT 4.0
Size
1.701MB
Filename
Name
Version
6.2
Arch
x86
OS support
Linux
MS-DOS
NetWare Server 3
NetWare Server 4
Netware Client32
OS/2 2.x
Windows 2000
Windows 9x
Windows NT 4.0
Size
64.29MB
Filename
Name
Version
3.00
Arch
x86
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Size
1.167MB
Filename
Name
Version
2003
Arch
x86
OS support
MS-DOS
OS/2 2.x
Size
554.797KB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 2000
Size
12.279MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.422MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.693MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.525MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.909MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows NT 4.0
Size
7.553MB
Filename
Name
Version
11.1
Arch
x86
, x64
OS support
MS-DOS
Windows 2000
Windows 9x
Windows XP/2k3
Size
36.353MB
Filename
Name
Version
3.7B / 3.7D
Arch
x86
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Size
1.58MB
Filename
Version
Arch
OS support
Size
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1997
File
Logs
Family
Release date
1998-05
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1996
File
Logs
Family
Release date
1997-05
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1999-01
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-02
File
Logs

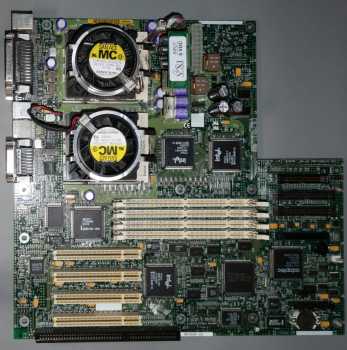

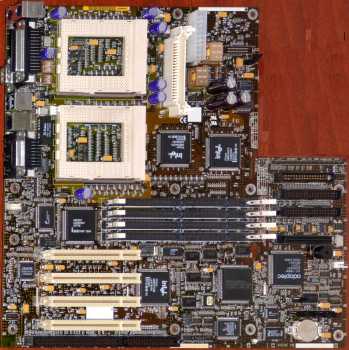

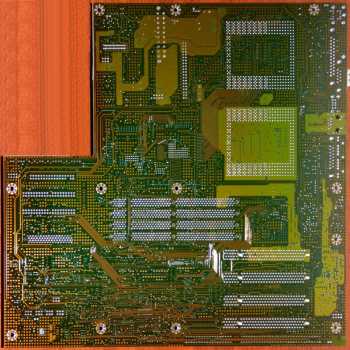

Image 1 of 7 (Microhouse)
Image 2 of 7 (Nexxen)
Image 3 of 7 (Computer Retro)
Image 4 of 7 (madlad)
Image 5 of 7 (Computer Retro)
Image 6 of 7 (Nexxen)
Image 7 of 7 (Computer Retro)
