Intel SE440BX (Seattle)
Chipset
Socket
FSB speeds 66MHz100MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
768MB
RAM type SDR UDIMM
PSU connector
Also known as
- Packard Bell PB870
- Packard Bell Seattle
- Time / Tiny (unknown model) system board
- Micron MBD001099-xx
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
Expansion slots2x
16-bit ISA
1x
3.3V AGP
4x
32-bit PCI
Known issues
- Underpowered VRM
The onboard VRM may not provide sufficient power for certain processors or configurations.
Notes
Due to an VRM issue, board officially doesn't support CPUs faster than 450 MHz. In practice a P3 550MHz Katmai was used on an AA 695201 revision board.
Also used in Dell Dimension XPS R series.
Optionally available with Crystal Audio CS4611
BIOS P11 and up can boot Pentium III 450 Katmai officially, higher speeds may sometimes work.
Last updated 2026-02-13T20:13:28Z
Board info score is 9.8/10
Chips
-> Chipset part
-> Audio
Crystal CS4611-CM (PCI Audio Accelerator)
Crystal CS4236B-KQ
CMD PRN406 (Passive audio filter/mixer)
-> Miscellaneous
-> Signal transmitter/receiver
-> Super I/O
12 BIOS files available
Phoenix - 12 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
4S4EB0X1.86A.0032.P12.9904221452
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4S4EB0X1.86A.0032.P12.9904221452
Note
PB OEM
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4S4EB0X1.86A.0031.P11.9902111530
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4S4EB0X1.86A.0027.P10.9810051915
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4S4EB0X1.86A.0025.P09.9808201254
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4S4EB0X1.86A.0022.P08.9807291314
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4S4EB0X1.86A.0021.P07.9807011526
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4S4EB0X1.05A.0009.P06.9810271357
Note
Micron OEM
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4S4EB0X1.86A.0011.P04.9803111313
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4S4EB0X1.05A.0007.P04.9808071140
Note
Micron OEM
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4S4EB0X1.11A.0005.P04.9808111643
Note
PB OEM
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4S4EB0X1.05A.0006.P03.9803261038
Note
Micron OEM
Core version
4.0 rel. 6.0
BIOS version
Logs
19 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
194.993KB
Filename
Name
Version
N/A
Arch
x86
OS support
OS/2 Warp 3.x
OS/2 Warp 4.x
Size
281.527KB
Filename
Name
Version
4.10.1.3000
Arch
x86
OS support
Windows 2000
Windows 9x
Size
89.072KB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows 9x
Size
2.81MB
Filename
Name
Version
PV2860
Arch
x86
OS support
Windows 9x
Size
932.754KB
Filename
Name
Version
2.00
Arch
x86
OS support
Windows 3.1x
Size
880.689KB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows NT 3.5x
Size
1.698MB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows NT 4.0
Size
1.701MB
Filename
Name
Version
3.0.2.2
Arch
x86
OS support
Windows 2000
Size
2.335MB
Filename
Name
Version
2.8.8.3
Arch
x86
OS support
Windows 9x
Size
10.727MB
Filename
Name
Version
2.8.8.3
Arch
x86
OS support
Windows 9x
Size
10.482MB
Filename
Name
Version
3.0.2.1
Arch
x86
OS support
Windows 9x
Size
2.055MB
Filename
Name
Version
2.0.7.0
Arch
x86
OS support
Windows NT 4.0
Size
2.024MB
Filename
Name
Version
3.20.1008
Arch
x86
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
1.386MB
Filename
Name
Version
3.7B / 3.7D
Arch
x86
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Size
1.58MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Size
1.54MB
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
2.236MB
Filename
Version
Arch
OS support
Size
Filename
4 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1998-01
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs
Image 1 of 5 (Microhouse)
Image 2 of 5 (Eric Voirin (oerg866))

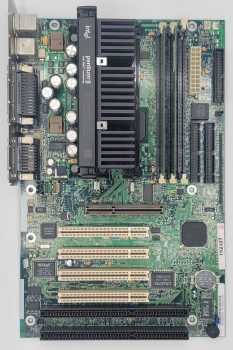

Image 3 of 5 (Vanessaira)
Image 4 of 5 (Eric Voirin (oerg866))

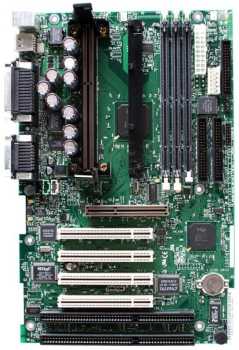

Image 5 of 5
