Intel TE430VX (Tiger Eye)
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
ramMax VRAM size
2MB
chipCache
256KB512KB
ramMax RAM size
128MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
3x
16-bit ISA
4x
32-bit PCI
notes Notes

OEM only board. Variant with proprietary power connector also used in Dell Dimension XPS PxxxS and MxxxS series.

Last updated 2023-11-07T14:53:06Z
Board info score is 9.6/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.00.08.CY1T
Note
Gateway OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.07.CY0J
Note
Dell OEM
Core version
Intel
BIOS version
Logs
drv 12 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
3.00
Arch
x86
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Size
1.167MB
Filename
Name
Version
2.41.07
Arch
x86
OS support
Windows 9x
Size
183.603KB
Filename
Name
Version
1.70.04
Arch
x86
OS support
Windows 3.1x
Size
606.14KB
Filename
Name
Version
1.6
Arch
x86
OS support
OS/2 1.x OS/2 2.x OS/2 Warp 3.x
Size
1.211MB
Filename
Name
Version
2.01.09
Arch
x86
OS support
Windows 9x
Size
124.185KB
Filename
Name
Version
2.00.18
Arch
x86
OS support
Windows NT 4.0
Size
177.732KB
Filename
Name
Version
1.12.000
Arch
x86
OS support
Windows 9x
Size
841.765KB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Size
14.627MB
Filename
Name
Version
1.0
Arch
x86
OS support
MS-DOS
Size
1.779MB
Filename
Name
Version
3.7B / 3.7D
Arch
x86
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Size
1.58MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 9x
Size
577.777KB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
569.737KB
Filename
doc 6 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-03-21
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-02
File
Logs
Chip
Release date
1995-07
File
Logs
Family
Release date
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs
image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (ThisOldTech)

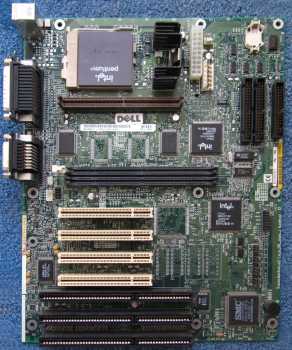

image3 Image 3 of 5 (WDKeeper)

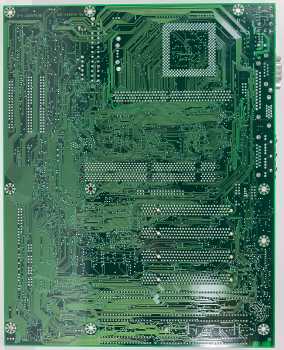

image4 Image 4 of 5 (ThisOldTech)

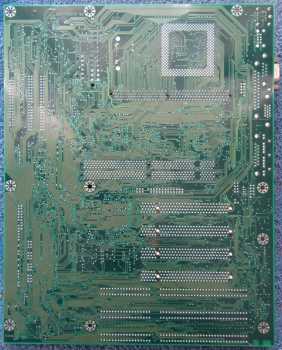

image5 Image 5 of 5 (WDKeeper)
