Intel VS440FX (Venus)
Chipset
Socket
FSB speeds 60MHz66MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
512MB(theoretical, 128MB SIMMs recognized)256MB(Manufacturer limit)
RAM types 72-pin FPM72-pin EDO
PSU connector
Also known as
- Tekram P6F40-A4
- MiTAC/Trigon PWA-PX6600N
- Octek RHINO PRO 6
- Gateway G6 FPC
- InterGraph TD-220
- Mitsuba MI25
- TriGem Darwin
- Young Micro Systems VS440FX
- TriGem 620CM
- ICS Computers 686MBVS200
- AST Bravo MS-T 6180
- AST Bravo MS-T 6200
- Seanix OEM-I-PRO
- ASPEN SYSTEMS Glacier
- Micron MBD001056 Millennia Pro 1 (Venus P6)
- Micron MBD001075 ClientPro XVI
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
4x
32-bit PCI
Notes
Optional Crystal CS4236 Audio. Has an undocumented 233 MHz jumper setting. Pentium II Overdrive officially supported in later BIOS releases.
Gateway boards not always react good to Intel retail bioses. It's always a good idea to set the BIOS to defaults before and after flashing.
Last updated 2025-11-05T15:05:29Z
Board info score is 9.8/10
Chips
-> Chipset part
-> Audio
-> Super I/O
CPU family support
12 BIOS files available
AMI - 12 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
12 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
194.993KB
Filename
Name
Version
N/A
Arch
x86
OS support
OS/2 Warp 3.x
OS/2 Warp 4.x
Size
281.527KB
Filename
Name
Version
4.10.1.3000
Arch
x86
OS support
Windows 2000
Windows 9x
Size
89.072KB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows 9x
Size
2.81MB
Filename
Name
Version
PV2860
Arch
x86
OS support
Windows 9x
Size
932.754KB
Filename
Name
Version
2.00
Arch
x86
OS support
Windows 3.1x
Size
880.689KB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows NT 3.5x
Size
1.698MB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows NT 4.0
Size
1.701MB
Filename
Name
Version
3.00
Arch
x86
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Size
1.167MB
Filename
Name
Version
3.7B / 3.7D
Arch
x86
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Size
1.58MB
Filename
Version
Arch
OS support
Size
Filename
9 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1997
File
Logs
Family
Release date
1998-05
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1996
File
Logs
Family
Release date
1997-05
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1999-01
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-02
File
Logs

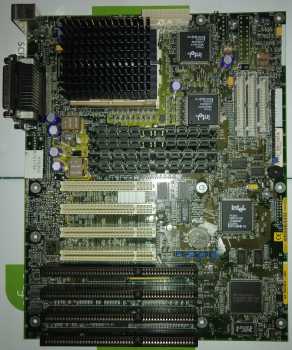

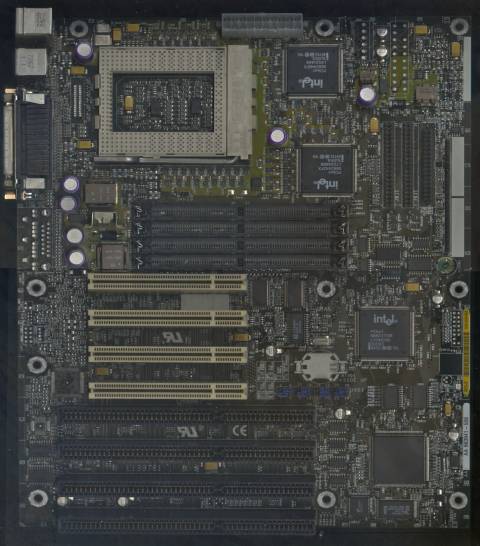

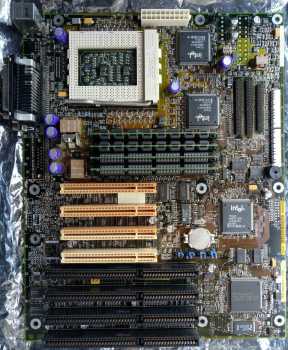

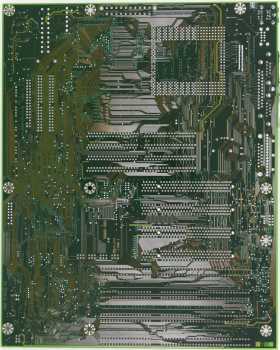

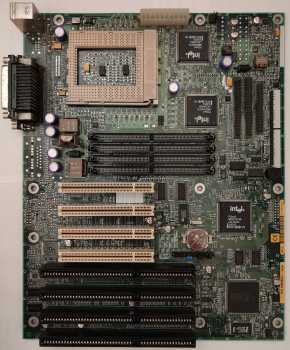

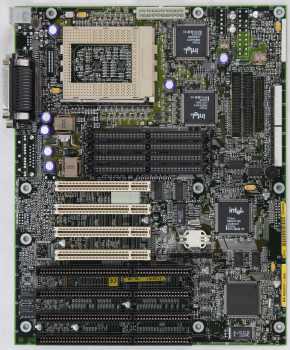

Image 1 of 9 (Microhouse)
Image 2 of 9 (Tremes Mike)
Image 3 of 9 (Iryuu)
Image 4 of 9 (Clous)
Image 5 of 9 (maniek86)
Image 6 of 9 (Carlos S. M.)
Image 7 of 9 (Tremes Mike)
Image 8 of 9 (Clous)
Image 9 of 9
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
