Koloe / Dianji ZX-H81 V1.01
Logs
chipChipset
cpuSocket
Socket H3 (LGA1150)
speedFSB speed
Empty
moboForm factor
Mini DTX (max 203 × 170 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
HDMI
1x
RJ-45 LAN
2x
SATA II
2x
SATA III
6x
USB 2.0
2x
USB 3.0
1x
VGA
cardExpansion slots
1x
PCIe x16
notes Notes

ZX-H81 V1.01 and V1.1 lack the PCIe x1 slot that can be found on V1.2 and later versions.

Last updated 2024-08-04T18:31:15Z
Board info score is 7.4/10
bios 3 BIOS files available

vendor AMI - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Latest available version, raw dump
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Oldest available version, raw dump
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Raw dump
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
Arch
OS support
Size
Filename
Name
Version
5.0.4.43v2
Arch
OS support
Windows 7
Size
5.317MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
2013-06
File
Logs
Chip
Release date
2014-05
File
Logs
Chip
Release date
2020-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-06-03
File
Logs
image1 Image 1 of 4

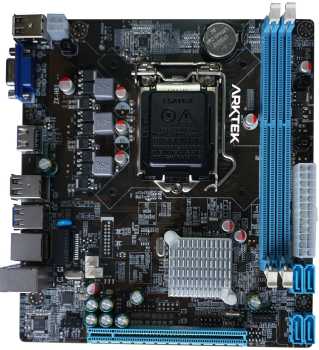

image2 Image 2 of 4

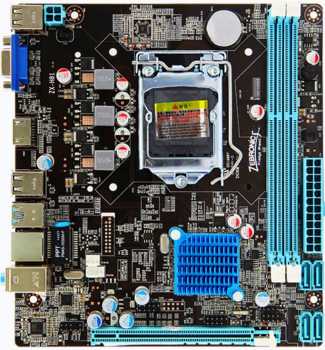

image3 Image 3 of 4

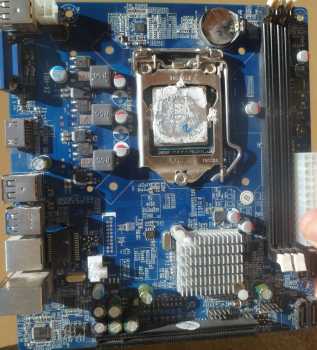

image4 Image 4 of 4

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
