Lanner Electronics EM-9560 series
Logs
chipChipset
cpuSocket
EBGA368
speedFSB speeds
66MHz100MHz133MHz
moboForm factor
EBX/Little Board/Biscuit SBC 5.25" (max 203 x 146 mm)
dimDimensions
203mm x 146mm
ramMax VRAM size
32MB
chipCache
None/Integrated in the CPU
ramMax RAM size
640MB128MB(onboard)
ramRAM type
144-pin SDR SO-DIMM
pwrPSU connector
Floppy (4-pin)
tag Also known as
connI/O ports
1x
CF Card Slot
1x
Floppy interface
1x
GPIO
2x
IDE interface
1x
IrDA
1x
PS/2 KB+MS Combo
1x
PS/2 keyboard
1x
Parallel
1x
RJ-45 LAN
4x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
PC/104
1x
PC/104+ (PC/104-Plus)
notes Notes

EM-9560A EBC with Intel ULV Celeron 400MHz, Fan-less EM-9560B EBC with Intel ULV Celeron 650MHz

Last updated 2025-12-11T06:00:29Z
Board info score is 7.9/10
bios No BIOS files available
drv 11 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
5.719.0325.2009
Arch
x86
OS support
Linux MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Windows 2000 Windows 7 Windows 9x Windows Vista Windows XP/2k3
Size
39.488MB
Filename
Name
Version
4.43V
Arch
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.058MB
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
227.749KB
Filename
Name
Version
5.70d
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
3.925MB
Filename
Name
Version
V3.00a
Arch
x86
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.867MB
Filename
Name
Version
13.01.03
Arch
OS support
Windows 9x
Size
5.156MB
Filename
Name
Version
10.10.20
Arch
OS support
Windows NT 4.0
Size
3.663MB
Filename
Name
Version
13.00.49
Arch
OS support
Windows 9x
Size
4.792MB
Filename
Name
Version
11.10.09
Arch
OS support
Windows NT 4.0
Size
Empty
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Size
4.28MB
Filename
Version
Arch
x86
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
4.253MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-10-14
File
Logs
Chip
Release date
File
Logs

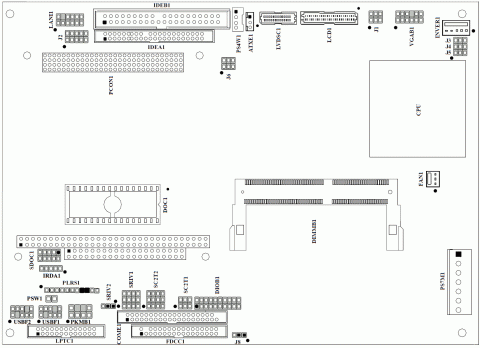

image1 Image 1 of 2 (Lanner Electronics)
image2 Image 2 of 2 (Lanner Electronics)
