MSI K7D Master VER:1
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
3.5GB
ramRAM types
DDR UDIMMDDR RDIMM ECCDDR UDIMM ECC
pwrPSU connector
ATX P4 connector 12v (4-pin P4) ATX 1.x (20-pin ATX)
maxcpuMulti CPU support
2 CPUs
tag Also known as
  • MSI MS-6501 VER:1.x
  • MSI K7D Master-L (LAN)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
3x
32-bit PCI
2x
64-bit PCI
1x
Universal AGP Pro
notes Notes
  • Optional LAN.
Last updated 2024-01-16T12:01:43Z
Board info score is 9.8/10
bios 7 BIOS files available

vendor Award - 7 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/09/2003-AMD762-W83627-6A6S7M49C-00
Note
W6501MS V1.91 100903 10:38:36
Core version
6.00PG
BIOS version
Logs
POST string
03/18/2003-AMD762-W83627-6A6S7M49C-00
Note
W6501MS V1.8B2 031803 23:57:20
Core version
6.00PG
BIOS version
Logs
POST string
12/13/2002-AMD762-W83627-6A6S7M49C-00
Note
W6501MS V1.6 121302 11:47:22
Core version
6.00PG
BIOS version
Logs
POST string
09/11/2002-AMD762-W83627-6A6S7M49C-00
Note
W6501MS V1.5 091102 17:04:01
Core version
6.00PG
BIOS version
Logs
POST string
05/30/2002-AMD762-W83627-6A6S7M49C-00
Note
W6501MS V1.3 053002 15:48:32
Core version
6.00PG
BIOS version
Logs
POST string
03/05/2002-AMD762-W83627-6A6S7M49C-00
Note
W6501MS V1.1 030502 16:01:14
Core version
6.00PG
BIOS version
Logs
POST string
01/21/2002-AMD762-W83627-6A6S7M49C-00
Note
W6501MS V1.0 012102 17:51:12
Core version
6.00PG
BIOS version
Logs
drv 15 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
1.43s
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
8.286MB
Filename
Name
Version
1.11
Arch
x86
OS support
Windows 9x
Size
180.222KB
Filename
Name
Version
1.22s
Arch
x86
OS support
Windows 9x
Size
423.595KB
Filename
Name
Version
1.8.7
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
5.317MB
Filename
Name
Version
8.2.2.0
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
6.247MB
Filename
Name
Version
6.2
Arch
x86
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Size
64.29MB
Filename
Name
Version
2003
Arch
x86
OS support
MS-DOS OS/2 2.x
Size
554.797KB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 2000
Size
12.279MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.422MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.693MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.525MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.909MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows NT 4.0
Size
7.553MB
Filename
Name
Version
11.1
Arch
x86 , x64
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Size
36.353MB
Filename
Name
Version
A2.53
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
14.514MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-01-28
File
Logs
Chip
Release date
2001-12-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs

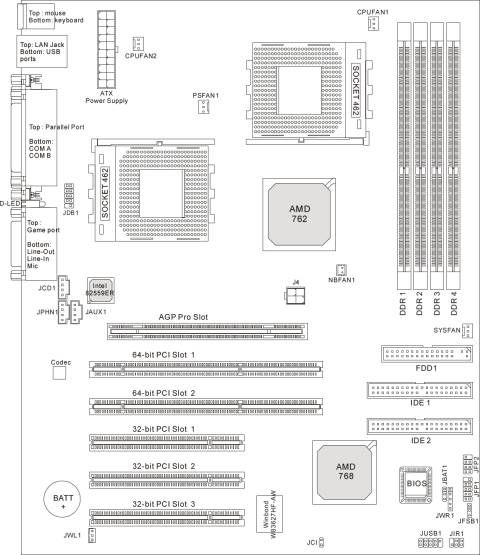

image1 Image 1 of 6 (MSI)
image2 Image 2 of 6 (Motherboard Continuum)

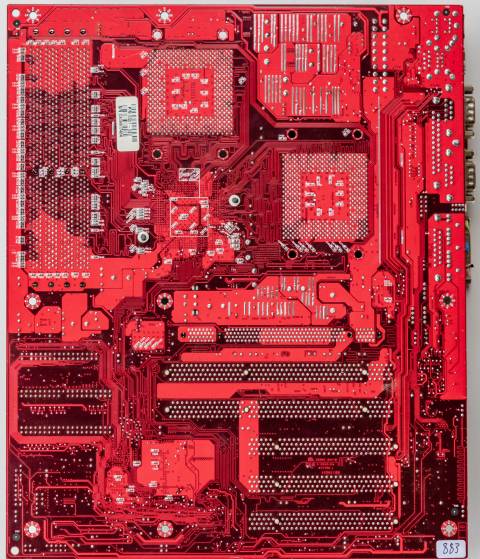

image3 Image 3 of 6 (Motherboard Continuum)

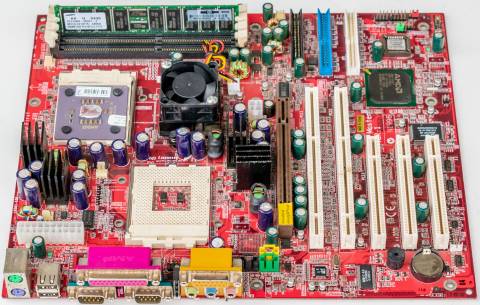

image4 Image 4 of 6 (Motherboard Continuum)

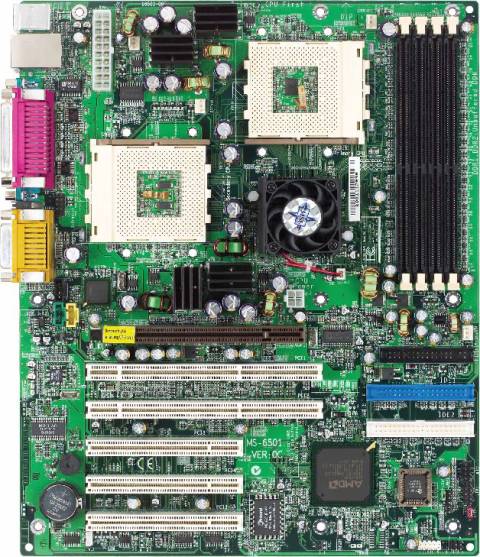

image5 Image 5 of 6 (MSI)

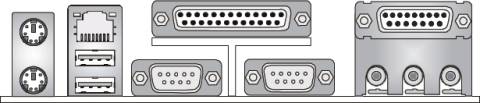

image6 Image 6 of 6 (MSI)
