MSI MS-4143 (VER. 1.0) (AL2)
Chipset
Socket
FSB speeds 25MHz33MHz40MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions270mm x 220mm
Max RAM size
RAM type
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
3x
32-bit PCI
Known issues
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
Last updated 2024-03-24T12:42:09Z
Board info score is 9.2/10
Chips
-> Chipset part
-> Bridge Interface
-> Signal transmitter/receiver
-> Super I/O
CPU family support
5 BIOS files available
AMI - 4 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
41-P000-000000-00101111-072594-ALI-1445
Note
Core version
072594
BIOS version
Logs
POST string
41-A301-001169-00101111-101094-ALI39/45
Note
Core version
101094
BIOS version
Logs
POST string
41-P000-000000-00001111-072594-ALI-1445-H
Note
Core version
072594
BIOS version
Logs
POST string
41-P000-001169-00101111-072594-ALI-1445
Note
Core version
072594
BIOS version
Logs
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
1 other file available
Title
File
Logs
Image 1 of 2 (Microhouse)

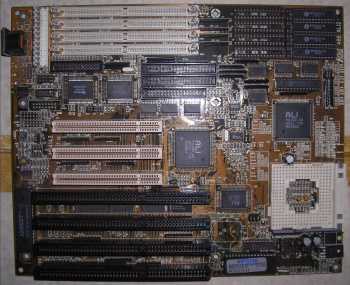

Image 2 of 2
