PCChips/Hsin Tech M754LR+
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
66MHz100MHz133MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 210mm
ramMax VRAM size
32MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
cardExpansion slots
1x
16-bit ISA
3x
32-bit PCI
notes Notes

Some quirks:

  • If BIOS is to be believed, theoretically supports up to 20x CPU clock multiplier.
  • Both APM and ACPI are switchable.
  • IDE manual autodetection explicitly recognizes DVD drives (but converts them to CDROM when leaving the screen).
  • Ultra DMA must be enabled separately in Features Setup.
  • VRAM adjustable between 0 and 32 MB. If dedicated video memory is fitted (between ATX and NB), the option must be set to 0 for it to work.
Last updated 2025-11-12T15:22:47Z
Board info score is 9.6/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-0306-001437-00101111-071595-A631A543-M754LMR
Note
Core version
071595
BIOS version
Logs
drv 47 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
4.05.1110 (VxD) / 1.53 (NT4)
Arch
x86
OS support
Windows 9x Windows NT 4.0
Size
2.755MB
Filename
Name
Version
4.05.1109 (VxD) / 5.12.01.5170 (WDM) / 1.5 (NT4)
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
17.116MB
Filename
Name
Version
5.12.01.5124
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
3.774MB
Filename
Name
Version
0.14.7
Arch
x86
OS support
Linux
Size
27.876KB
Filename
Name
Version
4.05.1109
Arch
x86
OS support
Windows 9x Windows NT 4.0
Size
16.169MB
Filename
Name
Version
5.12.01.5126
Arch
x86
OS support
Windows 2000 Windows 9x
Size
3.213MB
Filename
Name
Version
2.20
Arch
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
10.074MB
Filename
Name
Version
7.66.01.0
Arch
x86
OS support
Windows 9x Windows NT 4.0
Size
3.182MB
Filename
Name
Version
40.72
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
12.344MB
Filename
Name
Version
28.32
Arch
x86
OS support
Windows 9x
Size
7.99MB
Filename
Name
Version
28.32
Arch
x86
OS support
Windows NT 4.0
Size
7.651MB
Filename
Name
Version
28.32
Arch
x86
OS support
Windows 9x
Size
7.975MB
Filename
Name
Version
28.32
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
8.207MB
Filename
Name
Version
1.19
Arch
x86 , x64
OS support
MS-DOS NetWare Server 4 Netware Client32 Windows 2000 Windows 3.1x Windows 9x Windows NT 4.0 Windows XP/2k3
Size
3.818MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 9x
Size
18.093MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
18.408MB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
7.031MB
Filename
Version
Arch
x86
OS support
Windows NT 4.0
Size
7.718MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
16.37MB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
13.481MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
14.666MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
14.488MB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
11.948MB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
11.947MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
4.616MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
4.646MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
4.646MB
Filename
Version
Arch
x86
OS support
Windows NT 4.0
Size
4.077MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
8.227MB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
7.986MB
Filename
Version
Arch
x86
OS support
Windows NT 4.0
Size
3.05MB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
6.267MB
Filename
Version
Arch
x86
OS support
Windows NT 4.0
Size
5.745MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
6.449MB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
5.98MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
6.111MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
3.743MB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
3.621MB
Filename
Version
Arch
x86
OS support
Windows NT 4.0
Size
3.124MB
Filename
Version
Arch
x86
OS support
Windows 2000
Size
3.629MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0
Size
9.563MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0
Size
6.638MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
12.344MB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
11.983MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
17.368MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
8.585MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
10.171MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs

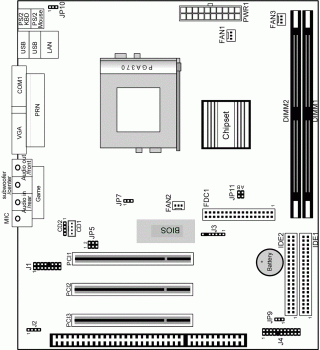

image1 Image 1 of 3 (PCChips/Hsin Tech)
image2 Image 2 of 3 (Nexxen)

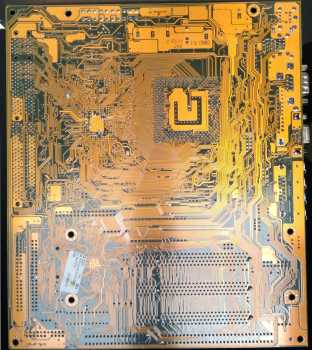

image3 Image 3 of 3 (Nexxen)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
