Soyo SY-5STM
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
60MHz66MHz75MHz83MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 190mm
ramMax VRAM size
4MB
chipCache
None/Integrated in the CPU
ramMax RAM size
256MB
ramRAM types
SDR UDIMMSDR UDIMM ECC
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
2x
16-bit ISA
2x
32-bit PCI
Last updated 2023-07-22T02:56:24Z
Board info score is 9.8/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/23/1998-SiS-5598-2A5IIS29C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
10/22/1998-SiS-5598-2A5IIS29C-00
Note
Core version
4.51PG
BIOS version
Logs
drv 9 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
ALS11.A1.20
Arch
x86
OS support
MS-DOS OS/2 Warp 3.x Windows 9x Windows NT 4.0
Size
881.205KB
Filename
Name
Version
ALS11.A0.70
Arch
x86
OS support
Windows NT 3.1 Windows NT 3.5x Windows NT 4.0
Size
54.479KB
Filename
Name
Version
1.16
Arch
x86
OS support
OS/2 Warp 4.x
Size
108.337KB
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
613.707KB
Filename
Name
Version
4.05.00.3000
Arch
x86
OS support
Windows 9x
Size
83.302KB
Filename
Name
Version
N/A
Arch
x86
OS support
Windows 9x
Size
6.496MB
Filename
Name
Version
1.13
Arch
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0
Size
Empty
Filename
Name
Version
2.04A
Arch
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
Empty
Filename
Name
Version
2.13
Arch
OS support
MS-DOS OS/2 Warp 3.x OS/2 Warp 4.x Windows 9x Windows NT 3.1 Windows NT 3.5x Windows NT 4.0
Size
Empty
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
mP6
Release date
1999-05-27
File
Logs
Family
mP6
Release date
1999-05-27
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs
image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (Motherboard Continuum)

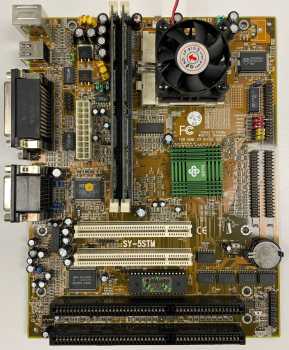

image3 Image 3 of 5 (Mark Price)

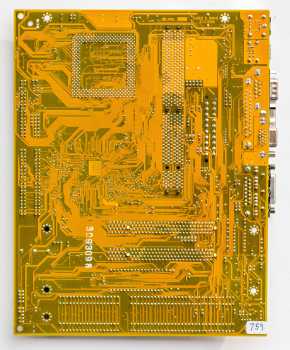

image4 Image 4 of 5 (Motherboard Continuum)

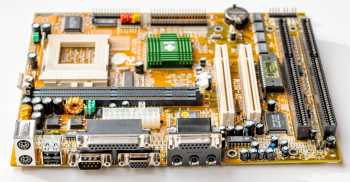

image5 Image 5 of 5 (Motherboard Continuum)
