Supermicro X5DAL-TG2
Logs
chipChipset
cpuSockets
Socket 604 (mPGA604) Socket 603 (mPGA603)
speedFSB speeds
400MHz533MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 249mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM types
DDR UDIMMDDR UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
4x
SATA II
2x
Serial
4x
USB 2.0
cardExpansion slots
1x
1.5V AGP Pro
2x
32-bit PCI
1x
64-bit PCI
1x
64-bit PCI-X
notes Notes

Support for Zero channel Serial ATA RAID

Last updated 2026-02-20T16:28:38Z
Board info score is 8.8/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Supermicro X5DAL-G/X5DAL-TG2 BIOS Rev 1.3b
Core version
4.0 Release 6.0
BIOS version
Logs
drv 29 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
3.5.1.6
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
18.517MB
Filename
Name
Version
6.3.0.1007
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
Empty
Filename
Name
Version
2.11.15
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
1.934MB
Filename
Name
Version
N/A
Arch
OS support
Windows 2000 Windows XP/2k3
Size
12.16MB
Filename
Name
Version
2.11.15.0
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
3.367MB
Filename
Name
Version
3.40.1001
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
2.236MB
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
26.809KB
Filename
Name
Version
1.2.0.5
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.483MB
Filename
Name
Version
1.3.68.2
Arch
x86
OS support
Windows 2000 Windows Vista Windows XP/2k3
Size
127.754KB
Filename
Name
Version
1.3.61.0
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Size
122.511KB
Filename
Name
Version
N/A
Arch
OS support
Windows XP/2k3
Size
26.809KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x64 , IA-64
OS support
Windows 7 Windows Vista Windows XP/2k3
Size
372.031KB
Filename
Version
Arch
x64 , IA-64
OS support
Windows Vista Windows XP/2k3
Size
352.962KB
Filename
Version
Arch
x64 , IA-64
OS support
Windows Vista Windows XP/2k3
Size
350.687KB
Filename
Version
Arch
x64 , IA-64
OS support
Windows Vista Windows XP/2k3
Size
332.262KB
Filename
Version
Arch
x64 , IA-64
OS support
Windows XP/2k3
Size
344.102KB
Filename
Version
Arch
x64 , IA-64
OS support
Windows XP/2k3
Size
253.911KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Size
142.215KB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows Vista Windows XP/2k3
Size
127.754KB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Size
137.428KB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
123.54KB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
123.144KB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
102.315KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x64 , IA-64
OS support
Windows Vista Windows XP/2k3
Size
443.132KB
Filename
Version
Arch
x64
OS support
Windows Vista Windows XP/2k3
Size
162.732KB
Filename
Version
Arch
x86
OS support
Windows XP/2k3
Size
429.247KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86 , x64
OS support
Windows 7
Size
6.881MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
145.542KB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
130.023KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-06-30
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2006-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2005-03
File
Logs

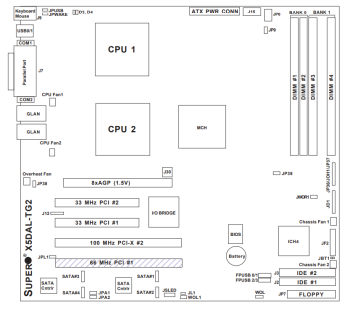

image1 Image 1 of 3 (Supermicro)
image2 Image 2 of 3 (Supermicro)

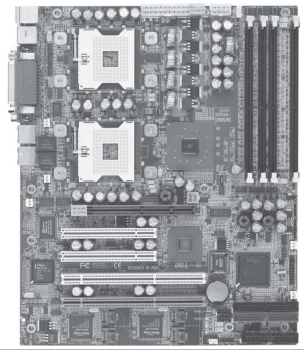

image3 Image 3 of 3 (Supermicro)
