Supermicro X7DBR-8+
Chipset
FSB speeds 667MHz1066MHz1333MHz
Form factorEnhanced Extended ATX/EEATX (max 347 × 330 mm)
Dimensions347mm x 330mm
Max RAM size
64GB
RAM type- DDR2 (FB-DIMM)
RAM slotMax RAM size
64GB
Multi CPU support2 CPUs
Also known as
- Supermicro X7DBR-i+ (no SCSI)
CPU socket
PSU connectors
I/O ports1x
External SCSI
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
6x
SATA II
2x
Serial
6x
USB 2.0
1x
VGA
Expansion slots1x
64-bit PCI-X
3x
PCIe x8
Notes
Uses Intel 82563EB Dual-Port Gigabit Ethernet Controller
Has one SIMSO IPMI socket (AOC-SIMSO)
Has one SOZCR socket (AOC-SOZCR1) (Only X7DBR-8+ uses it)
Longer slot can be used either as 64bit PCI-X or 2 x8 PCIe
One IDE supports Compact Flash Card
Only X7DBR-i+ has parallel
Last updated 2026-02-21T13:36:16Z
Board info score is 9/10
Chips
1 BIOS file available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Supermicro X7DBR-8+/X7DBR-I+ BIOS Rev 2.1c
Core version
4.0 Release 6.0
BIOS version
Logs
2 drivers available
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
Windows 2000
Windows XP/2k3
Size
Empty
Filename
Version
Arch
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Size
2.434MB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2006-05-10
File
Logs
Family
Release date
2008-06
File
Logs
Family
Release date
File
Logs

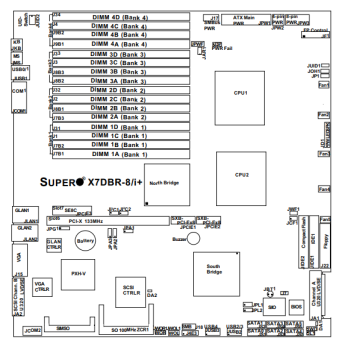

Image 1 of 4 (Supermicro)
Image 2 of 4 (Supermicro)

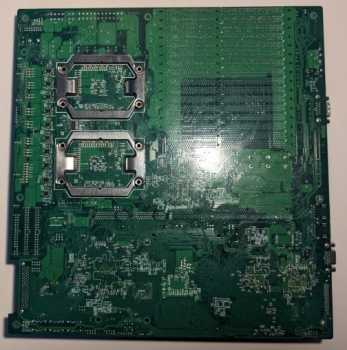

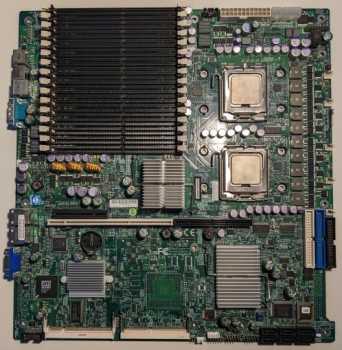

Image 3 of 4 (ronnyroy)
Image 4 of 4 (ronnyroy)
