Supermicro X7DCL-3
Logs
chipChipset
speedFSB speeds
1066MHz1333MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
306mm x 254mm
ramMax VRAM size
32MB
ramMax RAM size
48GB
ramRAM type
  • DDR2 (Unregistered, ECC)
ramRAM slot
ramMax RAM size
48GB
maxcpuMulti CPU support
2 CPUs
tag Also known as
cpuCPU socket
2x
pwrPSU connectors
?x
?x
connI/O ports
1x
CF Card Slot
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
8x
SAS-1 (3GBit)
6x
SATA II
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
3x
32-bit PCI
2x
PCIe x8
1x
PCIe x8 @ x4
notes Notes

Has Low Profile IPMI 2.0 (SIMLC) Slot

Last updated 2026-02-21T13:17:03Z
Board info score is 8.8/10
bios 2 BIOS files available

vendor Phoenix - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Supermicro X7DCL-3/X7DCL-I BIOS Rev 1.2a (X7DCL2M1)
Core version
4.0 Release 6.0
BIOS version
Logs
POST string
Note
Supermicro X7DCL-3/X7DCL-I BIOS Rev 1.2a (X7DCL1M1)
Core version
4.0 Release 6.0
BIOS version
Logs
drv 3 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
1.25.10.00
Arch
OS support
Windows Vista Windows XP/2k3
Size
2.241MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
Windows 2000 Windows XP/2k3
Size
Empty
Filename
Version
Arch
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Size
2.434MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

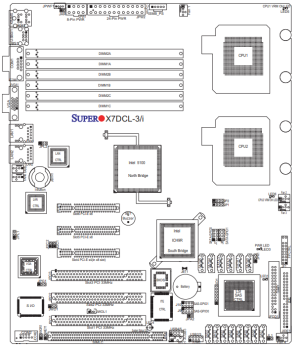

image1 Image 1 of 3 (Supermicro)
image2 Image 2 of 3 (Supermicro)
image3 Image 3 of 3 (Supermicro)
