Taiwan Commate / Commell LV-660
Logs
chipChipset
cpuSocket
EBGA368
speedFSB speed
133MHz
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Composite Video
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S-Video
1x
S/PDIF
2x
Serial
4x
USB 1.x
1x
VGA
cardExpansion slots
1x
32-bit PCI
notes Notes

Has either RCA video or S/PDIF

Optional VIA Eden 667/400 and EBGA C3 800 MHz CPU

LV-660E (Via Eden 533 Mhz)

LV-660C (Via C3 800 Mhz)

Last updated 2025-05-29T19:50:58Z
Board info score is 9.6/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/29/2003-601-8231-6A6LOF29C-00
Note
LV-660C Ver1.4
Core version
6.00PG
BIOS version
Logs
drv 10 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
4.43V
Arch
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.058MB
Filename
Name
Version
5.70d
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
3.925MB
Filename
Name
Version
V3.00a
Arch
x86
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.867MB
Filename
Name
Version
3.32
Arch
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Size
4.068MB
Filename
Name
Version
4.03.00.3120
Arch
OS support
Windows NT 4.0
Size
8.17MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
Windows 9x
Size
4.935MB
Filename
Version
Arch
OS support
Windows 9x
Size
3.32MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86 , x64
OS support
MS-DOS Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
6.215MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
6.941MB
Filename
Version
Arch
x86
OS support
Linux MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer UnixWare Windows 2000 Windows 3.1x Windows 9x Windows NT 4.0 Windows XP/2k3
Size
4.26MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-05-10
File
Logs
Chip
Release date
1999-10-29
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs
image1 Image 1 of 3 (Taiwan Commate / Commell)
image2 Image 2 of 3 (Taiwan Commate / Commell)

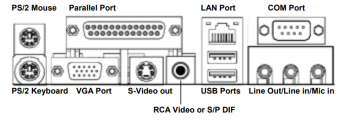

image3 Image 3 of 3 (Taiwan Commate / Commell)
