Texas Micro D386WB CPU (REV. E)
Chipset
Sockets
FSB speeds 25MHz33MHz
Form factorSingle Board Computer
Dimensions338mm x 122mm
Cache
None/Integrated in the CPU
Max RAM size
64MB
RAM type 30-pin SIMM
PSU connector
Empty
I/O ports1x
AT Keyboard
1x
Floppy interface
1x
IDE interface
1x
Parallel
2x
Serial
Expansion slots1x
16-bit ISA
Last updated 2026-01-27T17:00:38Z
Board info score is 7.6/10
Chips
1 BIOS file available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

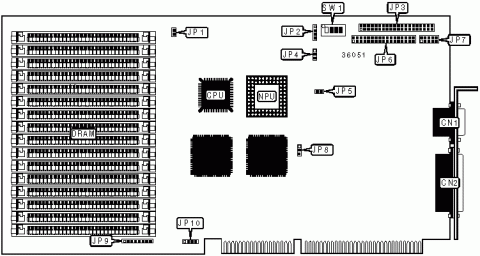

Image 1 of 4 (Microhouse)

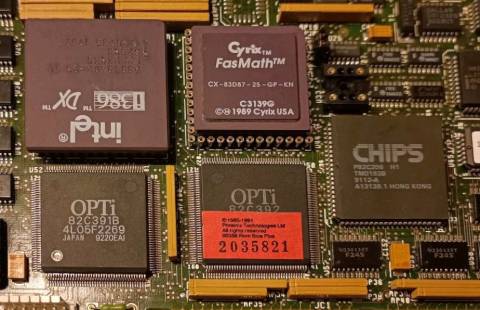

Image 2 of 4

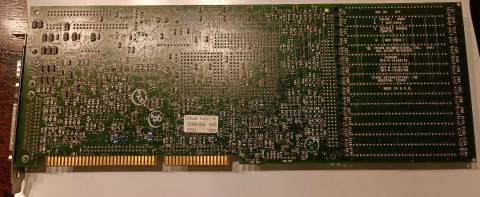

Image 3 of 4
Image 4 of 4
