TriGem Olympia-K
Chipset
FSB speeds 25MHz33MHz40MHz50MHz
Form factorLPX (max 229 x 330 mm)
Max VRAM size1MB
Cache
128KB256KB512KB1MB
Max RAM size
128MB
RAM type- FPM (Unregistered)
RAM slotMax RAM size
128MB
CPU socket
PSU connector
I/O ports1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slots1x
32-bit VLB
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Last updated 2025-06-24T17:39:50Z
Board info score is 8.1/10
Chips
CPU family support
2 BIOS files available
AMI - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
E486-6080-092694-KZ
Note
complete 128kB rom
Core version
081794
BIOS version
Logs
POST string
E486-6080-010795-KZ
Note
complete 128kB rom
Core version
061390
BIOS version
Logs
POST string
E486-6080-092694-KZ
Note
Core version
BIOS version
Logs
POST string
E486-6080-120193-KZ
Note
Core version
BIOS version
Logs
POST string
E486-6080-071194-KZ
Note
Core version
BIOS version
Logs
No drivers available
No board documents available
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs

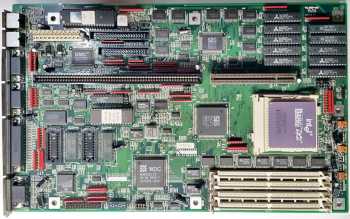

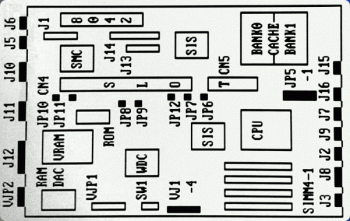

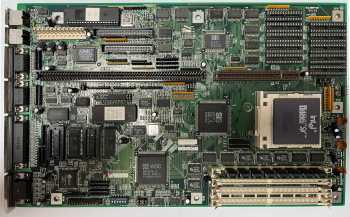

Image 1 of 4 (evasive)
Image 2 of 4 (pc1412)
Image 3 of 4
Image 4 of 4 (pc1412)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
