Tyan S2567 (Thunder HEsl)
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
100MHz133MHz
moboForm factor
Extended ATX/EATX (max 305 × 330 mm)
dimDimensions
305 mm x 330 mm
ramMax VRAM size
4MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB(PC133 ECC Registered SDRAM)
ramRAM type
SDR RDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
1x
IDE interface
2x
Internal SCSI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
cardExpansion slots
1x
16-bit ISA
1x
3.3V AGP Pro
6x
64-bit PCI
notes Notes

4 slots are 5V only, 2 slots are 3.3V only

Last updated 2026-02-18T07:04:01Z
Board info score is 9.4/10
bios 4 BIOS files available

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-009999-00101111-092801-AMIBIOS-0AAVC003
Note
Core version
070000
BIOS version
Logs
POST string
63-0100-009999-00101111-061301-AMIBIOS-0AAVC003
Note
Core version
070000
BIOS version
Logs
POST string
63-0100-009999-00101111-020701-AMIBIOS-0AAVC003
Note
Core version
070000
BIOS version
Logs
POST string
63-0100-009999-00101111-121400-AMIBIOS-0AAVC003
Note
Core version
070000
BIOS version
Logs
drv 12 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
4.06.1154
Arch
OS support
Windows 9x Windows NT 4.0
Size
20.947MB
Filename
Name
Version
5.12.01.4107
Arch
x86
OS support
Windows 2000 Windows 9x
Size
2.819MB
Filename
Name
Version
5.31.0.0
Arch
OS support
MS-DOS OS/2 2.x Windows 2000 Windows NT 4.0
Size
60.043MB
Filename
Name
Version
6.2
Arch
x86
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Size
64.29MB
Filename
Name
Version
2003
Arch
x86
OS support
MS-DOS OS/2 2.x
Size
554.797KB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 2000
Size
12.279MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.422MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.693MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
1.525MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows 9x
Size
8.909MB
Filename
Name
Version
2003
Arch
x86
OS support
Windows NT 4.0
Size
7.553MB
Filename
Name
Version
11.1
Arch
x86 , x64
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Size
36.353MB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005-08
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-04
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs

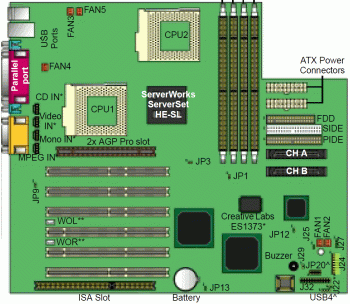

image1 Image 1 of 2 (Tyan)
image2 Image 2 of 2 (Tyan)
