Zida 5STX
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz75MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
220mm x 204mm
chipCache
256KB512KB
ramMax RAM size
256MB
ramRAM types
72-pin EDOSDR UDIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
2x
Serial
2x
USB 1.x
cardExpansion slots
3x
16-bit ISA
3x
32-bit PCI
wrench Known issues
  • No POST without CMOS Battery

This motherboard will not power on without a CMOS battery installed.

Last updated 2025-10-29T18:40:20Z
Board info score is 9.6/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
04/23/1998-i430TX-ITE867-2A59IZ1DC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
08/26/97-i430TX-ITE8679-2A59IZ1DC-00
Note
Core version
4.51PG
BIOS version
Logs
drv 6 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
3.00
Arch
x86
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Size
1.167MB
Filename
Name
Version
3.7B / 3.7D
Arch
x86
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Size
1.58MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x
Size
1.54MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
2.236MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 9x
Size
577.777KB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
569.737KB
Filename
image1 Image 1 of 6 (Microhouse)
image2 Image 2 of 6

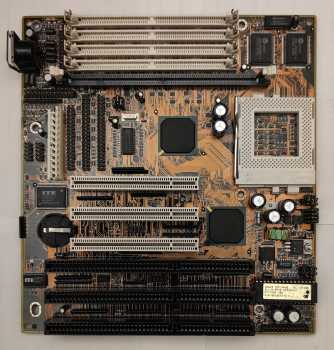

image3 Image 3 of 6 (Carlos S. M.)
image4 Image 4 of 6 (Harakhti)

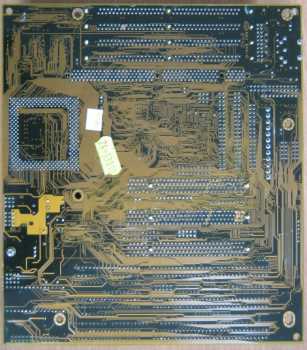

image5 Image 5 of 6
image6 Image 6 of 6 (Harakhti)
